ISO7142CCDBQR Overview

Product belongs to the ISO7142CC series. This product is categorized as Digital Isolators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004586 oz SSOP-16 Capacitive Coupling is the technology used. Operational temperature range: -55°C ~ 125°C Number of channels: 4 Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SSOP This product's Unidirectional This product is designed with 2500Vrms voltage isolation for maximum safety and reliability. This product is designed with No isolated power for maximum safety and reliability. The product has 2016/2/2 0:00:00 inputs from Side 1 to Side 2. Minimum 25kV/μs of 10kV/μs Maximum Propagation Delay tpLH/tpHL: 38ns, 38ns The minimum pulse width distortion is 3.5ns. Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C Capacitive Coupling is the isolation type specified for this product. Maximum supply voltage of 5 V Minimum supply voltage is 2.7 V 21 ns is 23 microseconds. This product features 2 Channel Forward-Channels for simple connectivity. The product has 2 Channel for reverse communication.

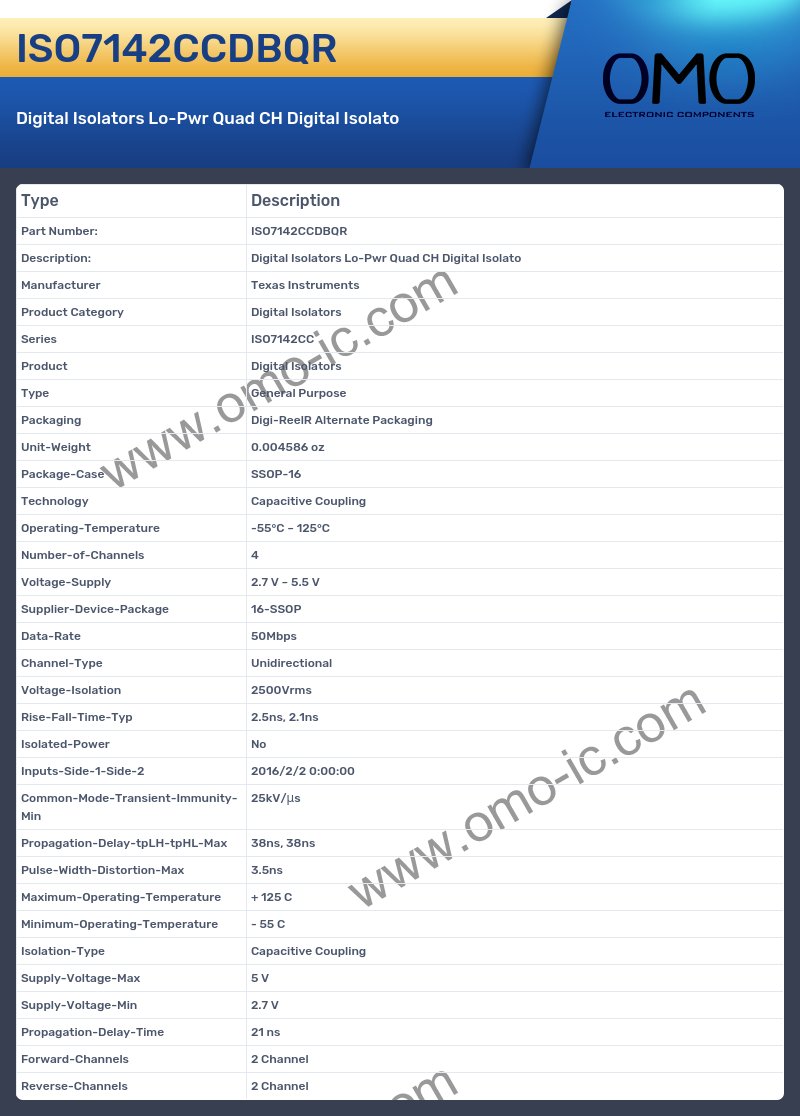

ISO7142CCDBQR Image

ISO7142CCDBQR Specifications

• Manufacturer Texas Instruments
• Product Category Digital Isolators
• Series ISO7142CC
• Product Digital Isolators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004586 oz
• Package-Case SSOP-16
• Technology Capacitive Coupling
• Operating-Temperature -55°C ~ 125°C
• Number-of-Channels 4
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 16-SSOP
• Data-Rate 50Mbps
• Channel-Type Unidirectional
• Voltage-Isolation 2500Vrms
• Rise-Fall-Time-Typ 2.5ns, 2.1ns
• Isolated-Power No
• Inputs-Side-1-Side-2 2016/2/2 0:00:00
• Common-Mode-Transient-Immunity-Min 25kV/μs
• Propagation-Delay-tpLH-tpHL-Max 38ns, 38ns
• Pulse-Width-Distortion-Max 3.5ns
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Isolation-Type Capacitive Coupling
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.7 V
• Propagation-Delay-Time 21 ns
• Forward-Channels 2 Channel
• Reverse-Channels 2 Channel
