HMC870LC5TR

HMC870LC5TR Overview

Product belongs to the HMC870 series. Type: Modulator Driver Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style QFN-EP-32 GaAs is the technology used. Frequency Bandwidth: DC to 20 GHz Product function is Modulator Driver. Number of channels: 1 Channel Voltage Supply Range: 7V This product has a - of 200μA. The device offers a 17.5 dB of 26dB. Test-Frequency is -. P1dB is - Power-off control: 1.5 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 7 V supply voltage for reliable performance. 165 mA is 92 nA. The operating frequency is DC to 20 GHz. NF-Noise-Figure is - The 20 dB is 12 dB.

HMC870LC5TR Image

HMC870LC5TR Specifications

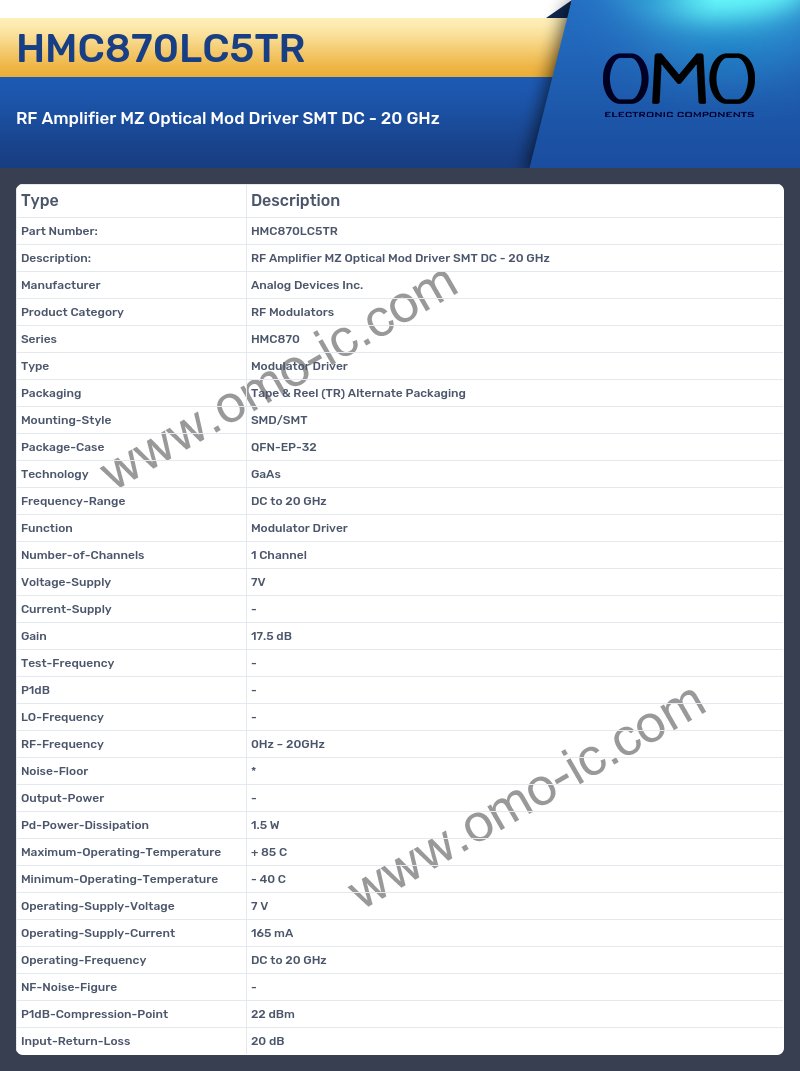

• Manufacturer Analog Devices Inc.
• Product Category RF Modulators
• Series HMC870
• Type Modulator Driver
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case QFN-EP-32
• Technology GaAs
• Frequency-Range DC to 20 GHz
• Function Modulator Driver
• Number-of-Channels 1 Channel
• Voltage-Supply 7V
• Current-Supply -
• Gain 17.5 dB
• Test-Frequency -
• P1dB -
• LO-Frequency -
• RF-Frequency 0Hz ~ 20GHz
• Noise-Floor *
• Output-Power -
• Pd-Power-Dissipation 1.5 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 7 V
• Operating-Supply-Current 165 mA
• Operating-Frequency DC to 20 GHz
• NF-Noise-Figure -
• P1dB-Compression-Point 22 dBm
• Input-Return-Loss 20 dB
