HMC814LC3B

HMC814LC3B Overview

Product belongs to the HMC814G series. Type: Multiplier Cut Strip Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style 12-VFQFN Exposed Pad This product's 13GHz ~ 24.6GHz range is 0Hz to 2.2GHz. GaAs is the technology used. Frequency Bandwidth: 13 GHz to 24.6 GHz Product function is Frequency Multiplier. Number of channels: 2 Channel Supplier device package: 12-SMT (3x3) The device offers a - of 26dB. Test-Frequency is -. RF-Type: VSAT, DBS Power-off control: 743 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. 88 mA is 92 nA. The operating frequency is 24.6 GHz. NF-Noise-Figure is - - OIP3 third-order intercept The 10 dB is 12 dB.

HMC814LC3B Image

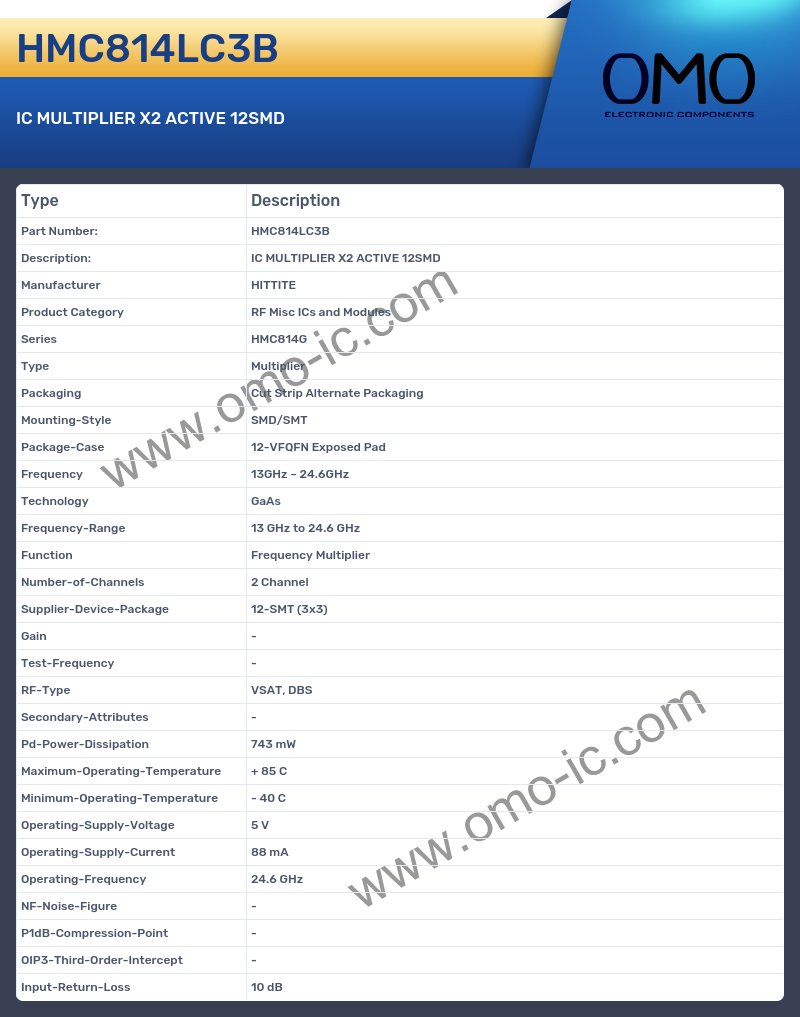

HMC814LC3B Specifications

• Manufacturer HITTITE
• Product Category RF Misc ICs and Modules
• Series HMC814G
• Type Multiplier
• Packaging Cut Strip Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case 12-VFQFN Exposed Pad
• Frequency 13GHz ~ 24.6GHz
• Technology GaAs
• Frequency-Range 13 GHz to 24.6 GHz
• Function Frequency Multiplier
• Number-of-Channels 2 Channel
• Supplier-Device-Package 12-SMT (3x3)
• Gain -
• Test-Frequency -
• RF-Type VSAT, DBS
• Secondary-Attributes -
• Pd-Power-Dissipation 743 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Operating-Supply-Current 88 mA
• Operating-Frequency 24.6 GHz
• NF-Noise-Figure -
• P1dB-Compression-Point -
• OIP3-Third-Order-Intercept -
• Input-Return-Loss 10 dB
