| Mfr. #: | HMC547LP3E |
|---|---|
| Fabricante: | Analog Devices Inc. |
| Descripción: | RF Switch ICs hi Isolation SPDT Switch DC - 20 GHz |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | HMC547LP3E Ficha de datos |
Product belongs to the HMC547 series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 57100 mg SMD/SMT Mounting-Style 16-VFQFN Exposed Pad Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: - Supplier device package: 16-QFN (3x3) Circuit type: SPDT Topology: Absorptive feedback P1dB is 23dBm (typ) IP1dB RF-Type: General Purpose Frequency upper limit of 20GHz Power-off control: 0.26 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 20 GHz. Dual switch functionality Attribute: High-Control-Voltage, Value: - 5 V to - 7 V The 38 dB of this product is 35 dB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

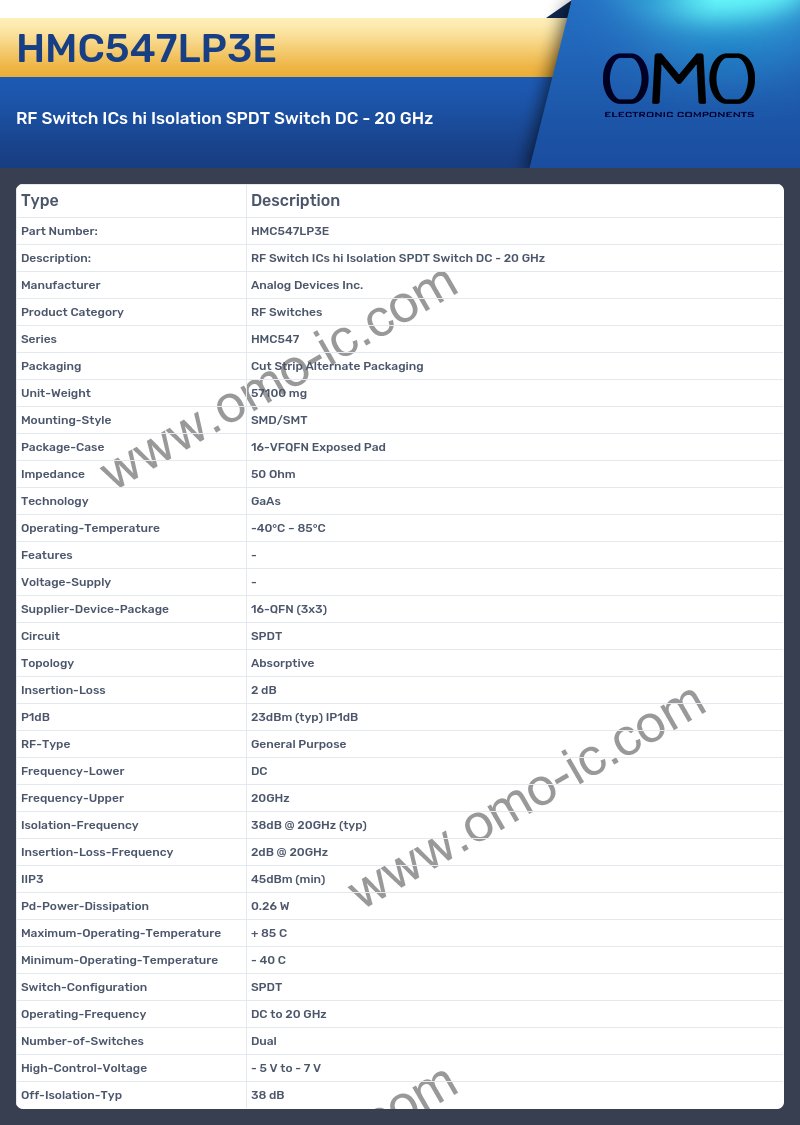

HMC547LP3E Specifications
A: What is the Series of the product?
Q: The Series of the product is HMC547.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Cut Strip Alternate Packaging
A: At what frequency does the Unit-Weight?
Q: The product Unit-Weight is 57100 mg.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed 16-VFQFN Exposed Pad
A: At what frequency does the Impedance?
Q: The product Impedance is 50 Ohm.
A: What is the Technology of the product?
Q: The Technology of the product is GaAs.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed -
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 16-QFN (3x3)
A: Is the cutoff frequency of the product Circuit?
Q: Yes, the product's Circuit is indeed SPDT
A: What is the Topology of the product?
Q: The Topology of the product is Absorptive.
A: What is the P1dB of the product?
Q: The P1dB of the product is 23dBm (typ) IP1dB.
A: What is the RF-Type of the product?
Q: The RF-Type of the product is General Purpose.
A: Is the cutoff frequency of the product Frequency-Upper?
Q: Yes, the product's Frequency-Upper is indeed 20GHz
A: What is the Pd-Power-Dissipation of the product?
Q: The Pd-Power-Dissipation of the product is 0.26 W.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 40 C.
A: What is the Switch-Configuration of the product?
Q: The Switch-Configuration of the product is SPDT.
A: At what frequency does the Operating-Frequency?
Q: The product Operating-Frequency is DC to 20 GHz.
A: What is the Number-of-Switches of the product?
Q: The Number-of-Switches of the product is Dual.
A: At what frequency does the High-Control-Voltage?
Q: The product High-Control-Voltage is - 5 V to - 7 V.
A: What is the Off-Isolation-Typ of the product?
Q: The Off-Isolation-Typ of the product is 38 dB.
