HMC510LP5TR

HMC510LP5TR Overview

Product belongs to the HMC510 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product The Height of the product is 0.039" (1.00mm). 32-VFQFN Exposed Pad Operational temperature range: -40°C ~ 85°C Frequency Bandwidth: 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz Voltage Supply Range: 5V Frequency center: 4.5GHz, 9GHz Tuning-Voltage-VDC ranges from 2 ~ 13 V for precise control. This product has a 15. The maximum current consumption of this product is 360mA. 20. This product has a power output of -6±2, 11±3, 12.5±2.5 dBm. This product's -116.

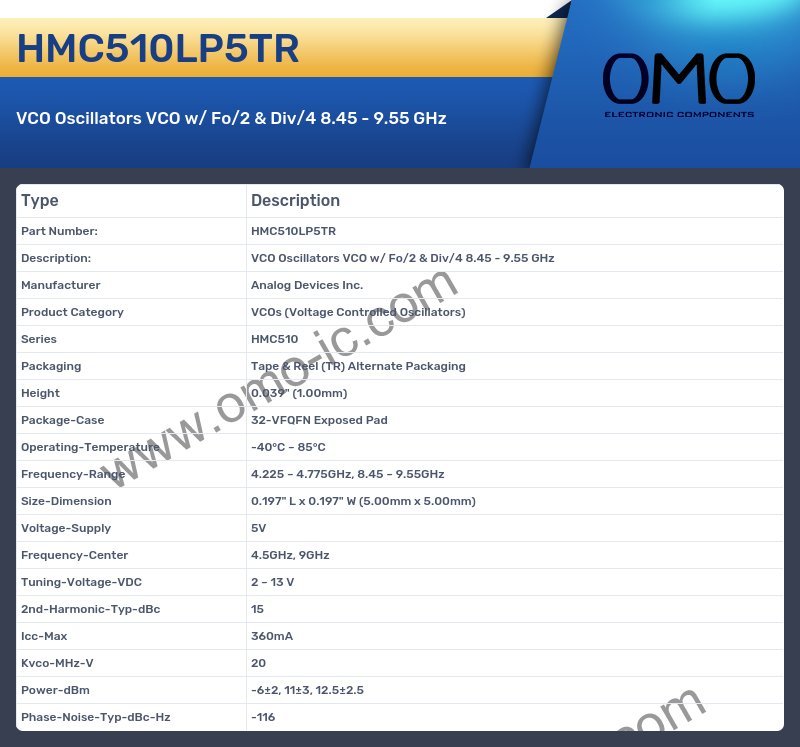

HMC510LP5TR Image

HMC510LP5TR Specifications

• Manufacturer Analog Devices Inc.
• Product Category VCOs (Voltage Controlled Oscillators)
• Series HMC510
• Packaging Tape & Reel (TR) Alternate Packaging
• Height 0.039" (1.00mm)
• Package-Case 32-VFQFN Exposed Pad
• Operating-Temperature -40°C ~ 85°C
• Frequency-Range 4.225 ~ 4.775GHz, 8.45 ~ 9.55GHz
• Size-Dimension 0.197" L x 0.197" W (5.00mm x 5.00mm)
• Voltage-Supply 5V
• Frequency-Center 4.5GHz, 9GHz
• Tuning-Voltage-VDC 2 ~ 13 V
• 2nd-Harmonic-Typ-dBc 15
• Icc-Max 360mA
• Kvco-MHz-V 20
• Power-dBm -6±2, 11±3, 12.5±2.5
• Phase-Noise-Typ-dBc-Hz -116
