HMC241ALP3E Overview

Product belongs to the HMC241A series. Cut Strip Alternate Packaging is the packaging method for this product Weight of 0.002014 oz SMD/SMT Mounting-Style QFN-16 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: * Voltage Supply Range: 5V Supplier device package: 16-SMT (3x3) Circuit type: SP4T Topology: Absorptive feedback P1dB is 29dBm RF-Type: WiMAX / WiBro Frequency upper limit of 4GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SP4T 2.5 mA is 92 nA. The operating frequency is 4 GHz. Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Maximum off time: 100 ns Quad switch functionality Attribute: High-Control-Voltage, Value: 2 V to 5 V Maximum on-time: 100 ns The 43 dB of this product is 35 dB.

HMC241ALP3E Image

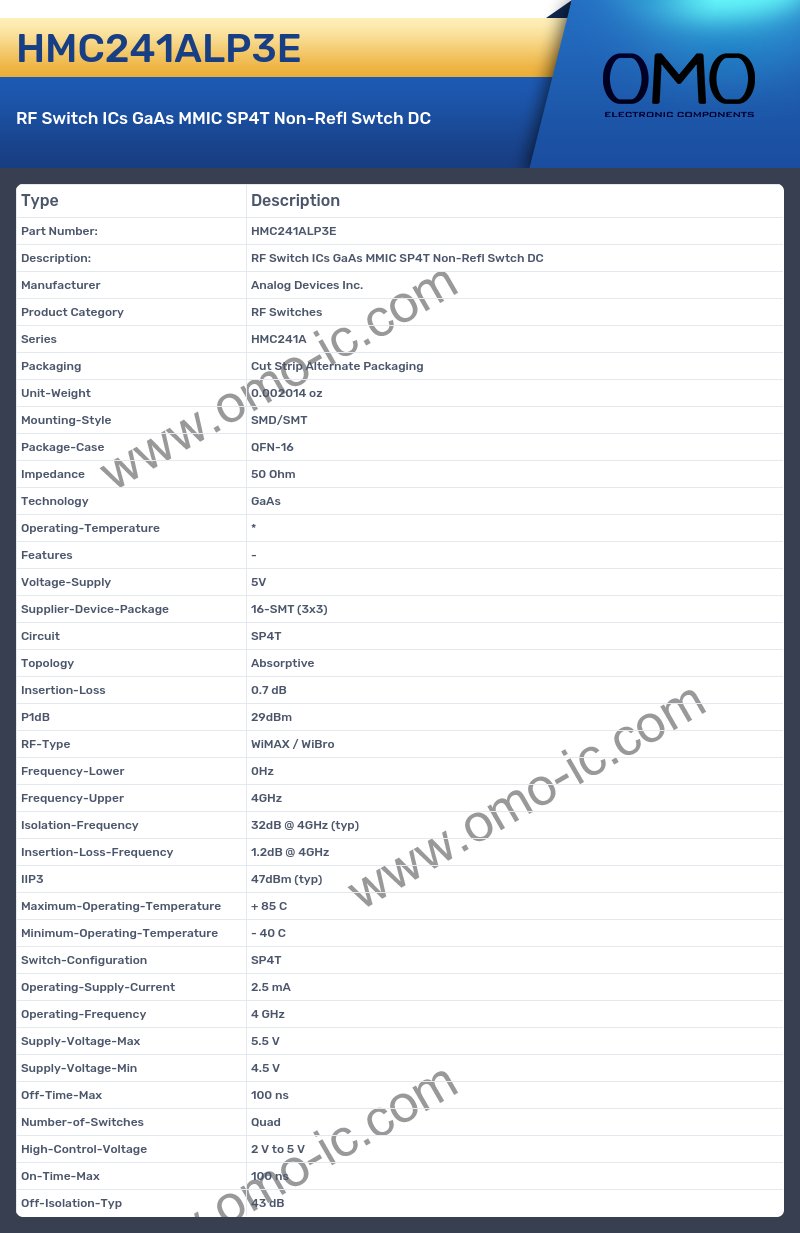

HMC241ALP3E Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC241A
• Packaging Cut Strip Alternate Packaging
• Unit-Weight 0.002014 oz
• Mounting-Style SMD/SMT
• Package-Case QFN-16
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature *
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package 16-SMT (3x3)
• Circuit SP4T
• Topology Absorptive
• Insertion-Loss 0.7 dB
• P1dB 29dBm
• RF-Type WiMAX / WiBro
• Frequency-Lower 0Hz
• Frequency-Upper 4GHz
• Isolation-Frequency 32dB @ 4GHz (typ)
• Insertion-Loss-Frequency 1.2dB @ 4GHz
• IIP3 47dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SP4T
• Operating-Supply-Current 2.5 mA
• Operating-Frequency 4 GHz
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Off-Time-Max 100 ns
• Number-of-Switches Quad
• High-Control-Voltage 2 V to 5 V
• On-Time-Max 100 ns
• Off-Isolation-Typ 43 dB
