HMC197BETR

HMC197BETR Overview

Product belongs to the HMC197B series. Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOT-26-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -40°C ~ 85°C Voltage Supply Range: 3V Supplier device package: SOT-26 Circuit type: SPDT Topology: - feedback P1dB is 29dBm RF-Type: General Purpose Frequency upper limit of 3GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Switch Configuration: SPDT The operating frequency is DC to 3 GHz. Single switch functionality The 30 dB of this product is 35 dB.

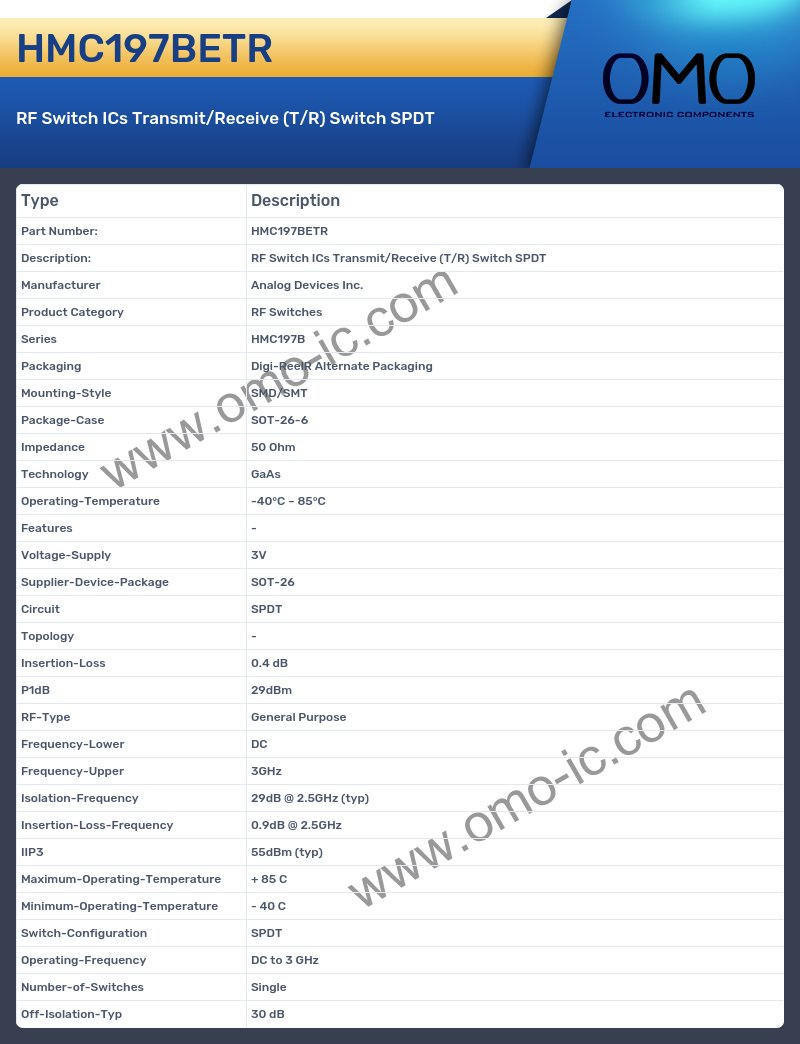

HMC197BETR Image

HMC197BETR Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC197B
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOT-26-6
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -40°C ~ 85°C
• Features -
• Voltage-Supply 3V
• Supplier-Device-Package SOT-26
• Circuit SPDT
• Topology -
• Insertion-Loss 0.4 dB
• P1dB 29dBm
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 3GHz
• Isolation-Frequency 29dB @ 2.5GHz (typ)
• Insertion-Loss-Frequency 0.9dB @ 2.5GHz
• IIP3 55dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 3 GHz
• Number-of-Switches Single
• Off-Isolation-Typ 30 dB
