HMC-C058

HMC-C058 Overview

Product belongs to the HMC-C058G series. Bulk is the packaging method for this product SMD/SMT Mounting-Style C-14-6 Impedance value is 50 Ohm GaAs is the technology used. Operational temperature range: -55°C ~ 85°C Voltage Supply Range: 5V Supplier device package: - Circuit type: SPDT Topology: Absorptive feedback P1dB is 27dBm (typ) IP1dB RF-Type: General Purpose Frequency upper limit of 18GHz Maximum operating temperature of + 85 C Minimum operating temperature: - 55 C Switch Configuration: SPDT The operating frequency is DC to 18 GHz. Dual switch functionality The 65 dB of this product is 35 dB.

HMC-C058 Image

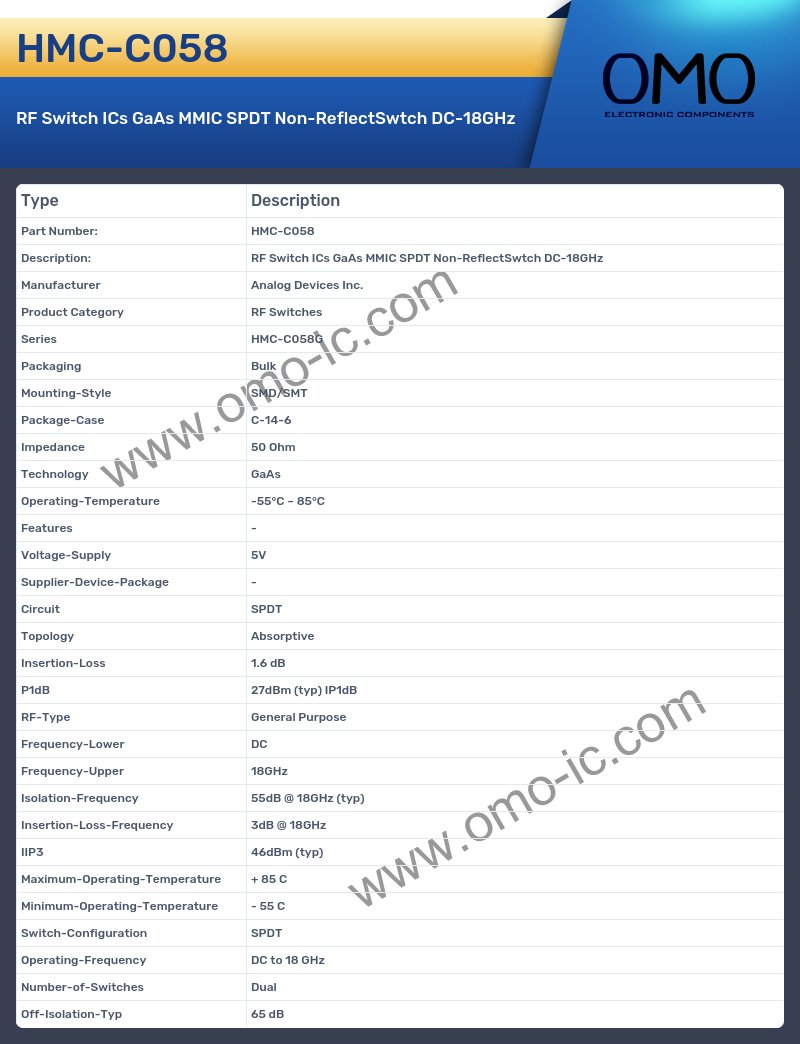

HMC-C058 Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Switches
• Series HMC-C058G
• Packaging Bulk
• Mounting-Style SMD/SMT
• Package-Case C-14-6
• Impedance 50 Ohm
• Technology GaAs
• Operating-Temperature -55°C ~ 85°C
• Features -
• Voltage-Supply 5V
• Supplier-Device-Package -
• Circuit SPDT
• Topology Absorptive
• Insertion-Loss 1.6 dB
• P1dB 27dBm (typ) IP1dB
• RF-Type General Purpose
• Frequency-Lower DC
• Frequency-Upper 18GHz
• Isolation-Frequency 55dB @ 18GHz (typ)
• Insertion-Loss-Frequency 3dB @ 18GHz
• IIP3 46dBm (typ)
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 55 C
• Switch-Configuration SPDT
• Operating-Frequency DC to 18 GHz
• Number-of-Switches Dual
• Off-Isolation-Typ 65 dB
