ESDALC6V1-5T6

ESDALC6V1-5T6 Overview

Product belongs to the ESDA, TRANSIL series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. Trade name: Transil. 6-XFDFN Operational temperature range: - Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 5 Channel Supplier device package: 6-Micro DFN (1x1) - Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 3V. The Voltage-Breakdown-Min is 6.1V. No Power-Line-Protection - Capacitance-Frequency Power-off control: 25 W Maximum operating temperature of + 125 C Breakdown-Voltage: 6.1 V The Cd-Diode-Capacitance is 7 pF 3 V working voltage Polarity: Unidirectional 2 A of IPP, Peak Pulse, and Current 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 3 V supply voltage for reliable performance.

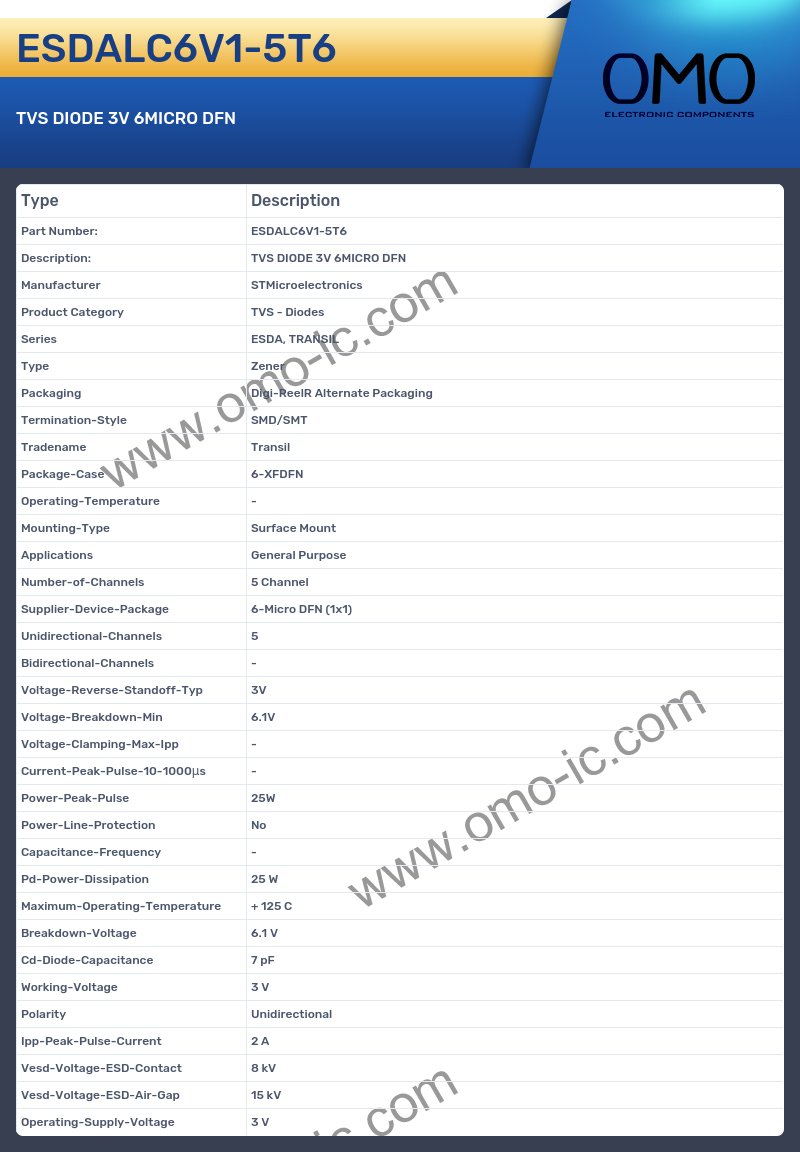

ESDALC6V1-5T6 Image

ESDALC6V1-5T6 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series ESDA, TRANSIL
• Type Zener
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Tradename Transil
• Package-Case 6-XFDFN
• Operating-Temperature -
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 5 Channel
• Supplier-Device-Package 6-Micro DFN (1x1)
• Unidirectional-Channels 5
• Bidirectional-Channels -
• Voltage-Reverse-Standoff-Typ 3V
• Voltage-Breakdown-Min 6.1V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 25W
• Power-Line-Protection No
• Capacitance-Frequency -
• Pd-Power-Dissipation 25 W
• Maximum-Operating-Temperature + 125 C
• Breakdown-Voltage 6.1 V
• Cd-Diode-Capacitance 7 pF
• Working-Voltage 3 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 2 A
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 3 V
