| Mfr. #: | ESDALC20-1BF4 |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | TVS DIODE 20V 37V 0201 |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | ESDALC20-1BF4 Ficha de datos |
Product belongs to the ESDA series. Type: Zener Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 0201 (0603 Metric) Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 1 Channel Supplier device package: 201 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 20V. The Voltage-Breakdown-Min is 22V. No Power-Line-Protection 10.5pF @ 1MHz Capacitance-Frequency Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C Breakdown-Voltage: 23 V Clamping-Voltage: 37 V The Cd-Diode-Capacitance is 10.5 pF Polarity: Bidirectional 2.4 A of IPP, Peak Pulse, and Current 20 kV of Vesd-Voltage-ESD-Contact 30 kV Vesd-Voltage-ESD-Air-Gap
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

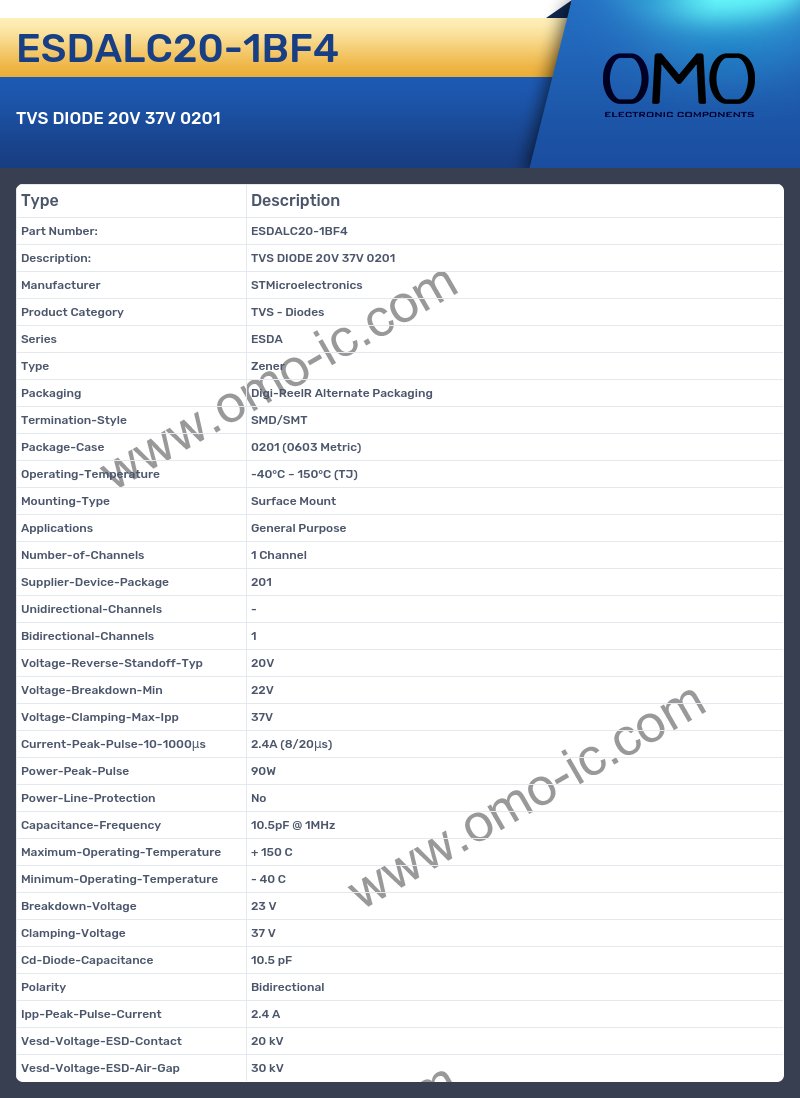

ESDALC20-1BF4 Specifications
A: At what frequency does the Series?
Q: The product Series is ESDA.
A: Is the cutoff frequency of the product Type?
Q: Yes, the product's Type is indeed Zener
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: What is the Termination-Style of the product?
Q: The Termination-Style of the product is SMD/SMT.
A: At what frequency does the Package-Case?
Q: The product Package-Case is 0201 (0603 Metric).
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 150°C (TJ).
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: Is the cutoff frequency of the product Applications?
Q: Yes, the product's Applications is indeed General Purpose
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 201.
A: At what frequency does the Bidirectional-Channels?
Q: The product Bidirectional-Channels is 1.
A: At what frequency does the Voltage-Reverse-Standoff-Typ?
Q: The product Voltage-Reverse-Standoff-Typ is 20V.
A: What is the Voltage-Breakdown-Min of the product?
Q: The Voltage-Breakdown-Min of the product is 22V.
A: What is the Power-Line-Protection of the product?
Q: The Power-Line-Protection of the product is No.
A: What is the Capacitance-Frequency of the product?
Q: The Capacitance-Frequency of the product is 10.5pF @ 1MHz.
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: What is the Breakdown-Voltage of the product?
Q: The Breakdown-Voltage of the product is 23 V.
A: At what frequency does the Clamping-Voltage?
Q: The product Clamping-Voltage is 37 V.
A: What is the Cd-Diode-Capacitance of the product?
Q: The Cd-Diode-Capacitance of the product is 10.5 pF.
A: Is the cutoff frequency of the product Polarity?
Q: Yes, the product's Polarity is indeed Bidirectional
A: At what frequency does the Ipp-Peak-Pulse-Current?
Q: The product Ipp-Peak-Pulse-Current is 2.4 A.
A: At what frequency does the Vesd-Voltage-ESD-Contact?
Q: The product Vesd-Voltage-ESD-Contact is 20 kV.
A: Is the cutoff frequency of the product Vesd-Voltage-ESD-Air-Gap?
Q: Yes, the product's Vesd-Voltage-ESD-Air-Gap is indeed 30 kV
