DAC8805QDBTR

DAC8805QDBTR Overview

Product belongs to the DAC8805 series. This product is categorized as Digital to Analog Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.007189 oz SMD/SMT Mounting-Style TSSOP-38 Operational temperature range: -40°C ~ 125°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 38-TSSOP Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is Multiplying DAC . External is the reference type. Number of D-A converters: 2 The 500ns (Typ) is an impressive 15 us. No Differential-Output Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 2 Converter 2 MS/s Sampling Rate

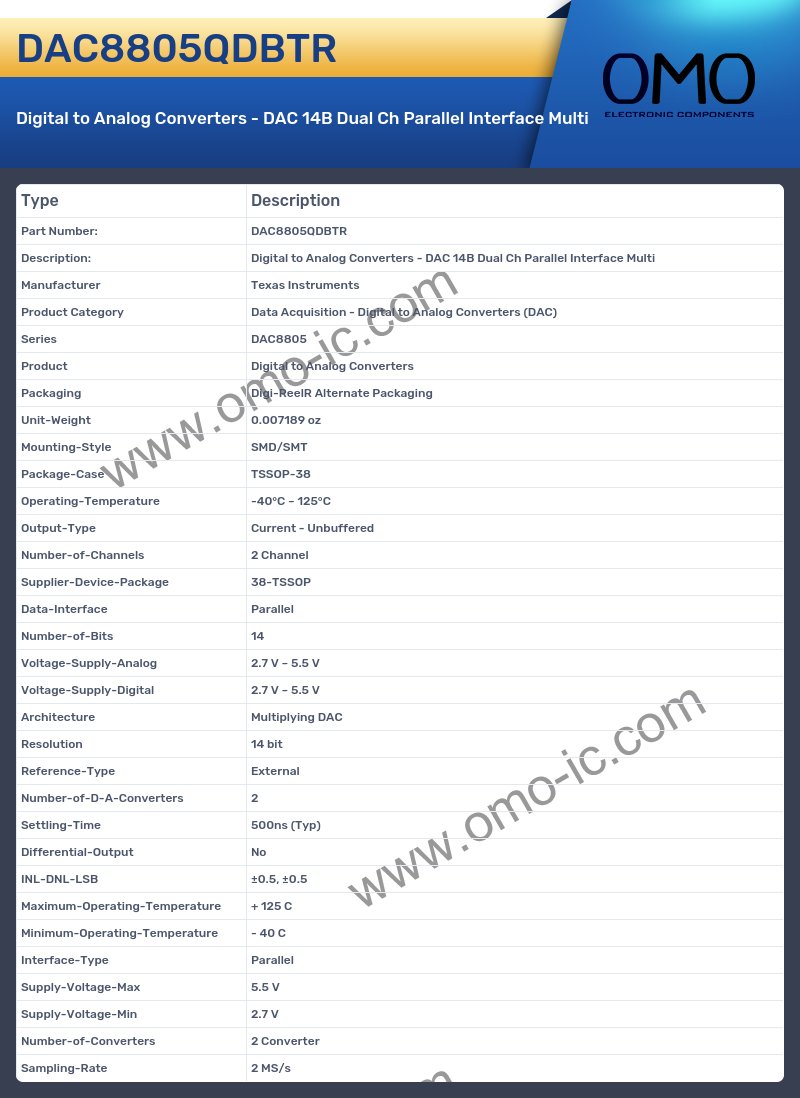

DAC8805QDBTR Image

DAC8805QDBTR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8805
• Product Digital to Analog Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.007189 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-38
• Operating-Temperature -40°C ~ 125°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 38-TSSOP
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture Multiplying DAC
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 500ns (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.5
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 2 Converter
• Sampling-Rate 2 MS/s
