DAC8562FS

DAC8562FS Overview

Product belongs to the DAC8562 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.028254 oz SMD/SMT Mounting-Style SOIC-20 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 20-SOIC W Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . Internal is the reference type. Number of D-A converters: 1 The 16μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 30 mW 6 mA is 92 nA.

DAC8562FS Image

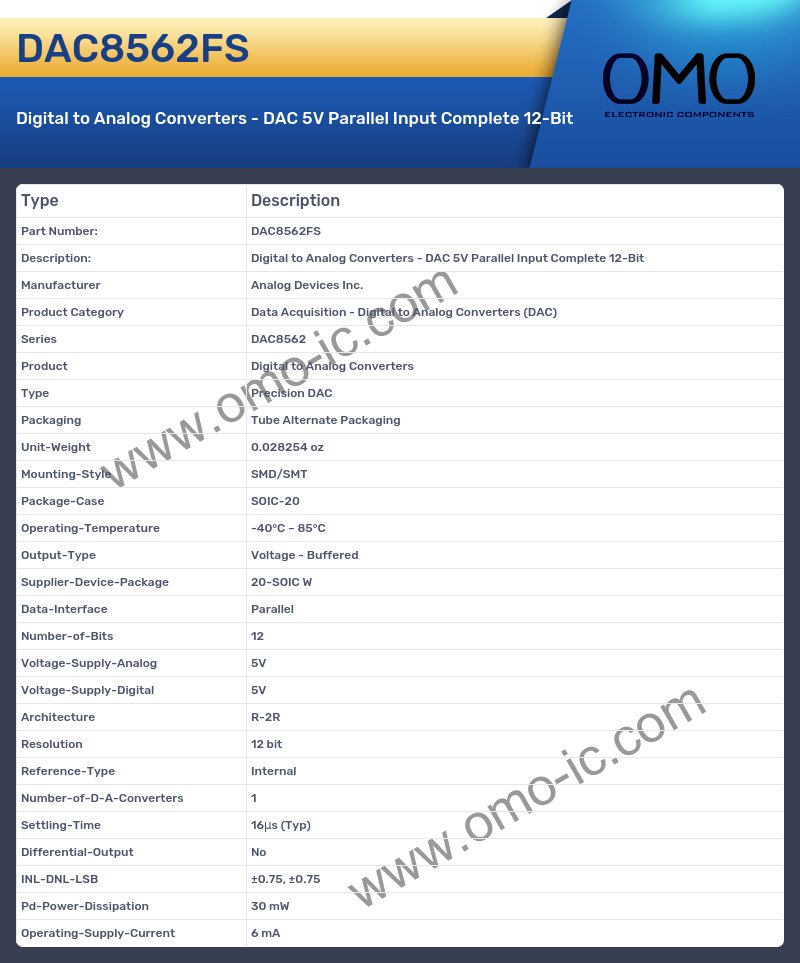

DAC8562FS Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC8562
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.028254 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 20-SOIC W
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 12 bit
• Reference-Type Internal
• Number-of-D-A-Converters 1
• Settling-Time 16μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.75, ±0.75
• Pd-Power-Dissipation 30 mW
• Operating-Supply-Current 6 mA
