DAC7615P

DAC7615P Overview

Product belongs to the - series. Tube is the packaging method for this product 16-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 16-PDIP Data-Interface: SPI 12 bits The Voltage-Supply-Analog is ±5V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs is an impressive 15 us. No Differential-Output

DAC7615P Image

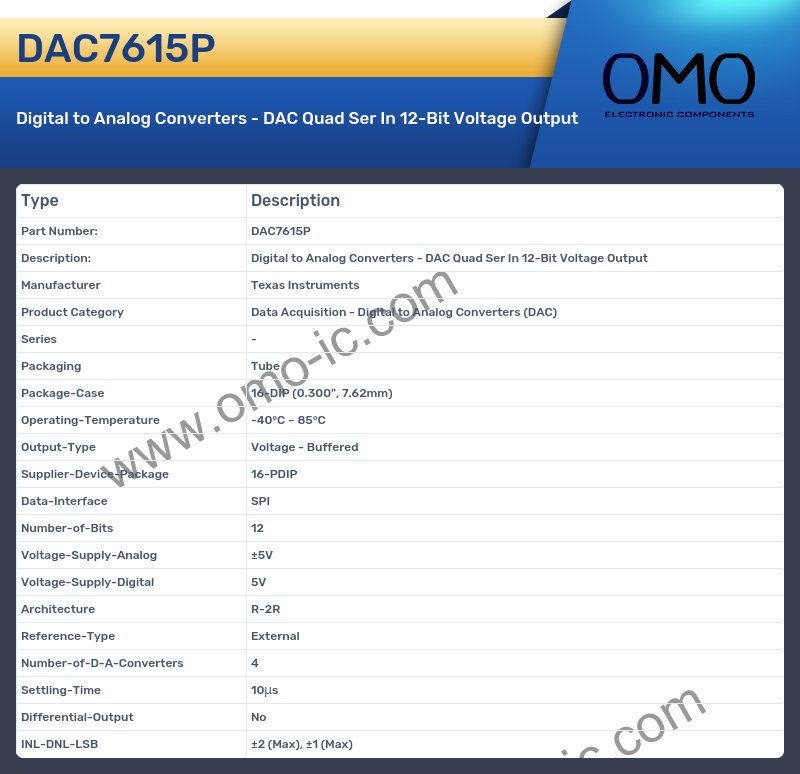

DAC7615P Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube
• Package-Case 16-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 16-PDIP
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog ±5V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 10μs
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±1 (Max)
