DAC7545KUG4 Overview

Product belongs to the - series. Tube Alternate Packaging is the packaging method for this product 20-SOIC (0.295", 7.50mm Width) Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 20-SOIC Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5 V ~ 15 V. The Voltage Supply Digital for this product is 5 V ~ 15 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 2μs is an impressive 15 us. No Differential-Output

DAC7545KUG4 Image

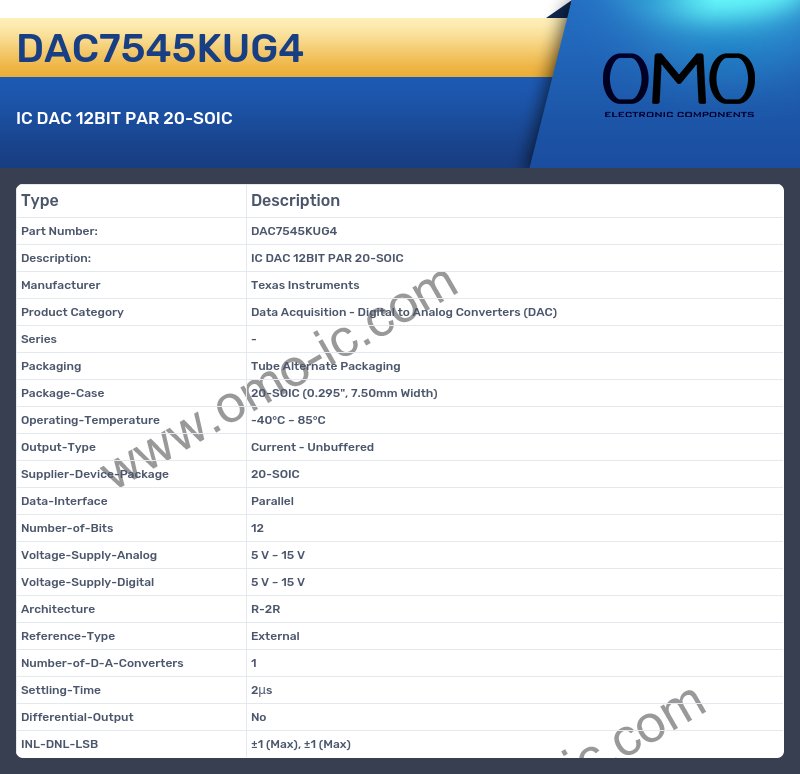

DAC7545KUG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube Alternate Packaging
• Package-Case 20-SOIC (0.295", 7.50mm Width)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 20-SOIC
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5 V ~ 15 V
• Voltage-Supply-Digital 5 V ~ 15 V
• Architecture R-2R
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 2μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
