DAC5681IRGCR

DAC5681IRGCR Overview

Product belongs to the DAC5681 series. This product is categorized as Digital to Analog Converters Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.007383 oz SMD/SMT Mounting-Style VQFN-64 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 64-VQFN (9x9) Data-Interface: LVDS - Parallel 16 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 1.71 V ~ 2.15 V. The architecture of this product is Current Sink . External, Internal is the reference type. Number of D-A converters: 1 The 10.4μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 79 dB The DAC5681EVM. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Number-of-Converters: 1 Converter 1 GS/s Sampling Rate

DAC5681IRGCR Image

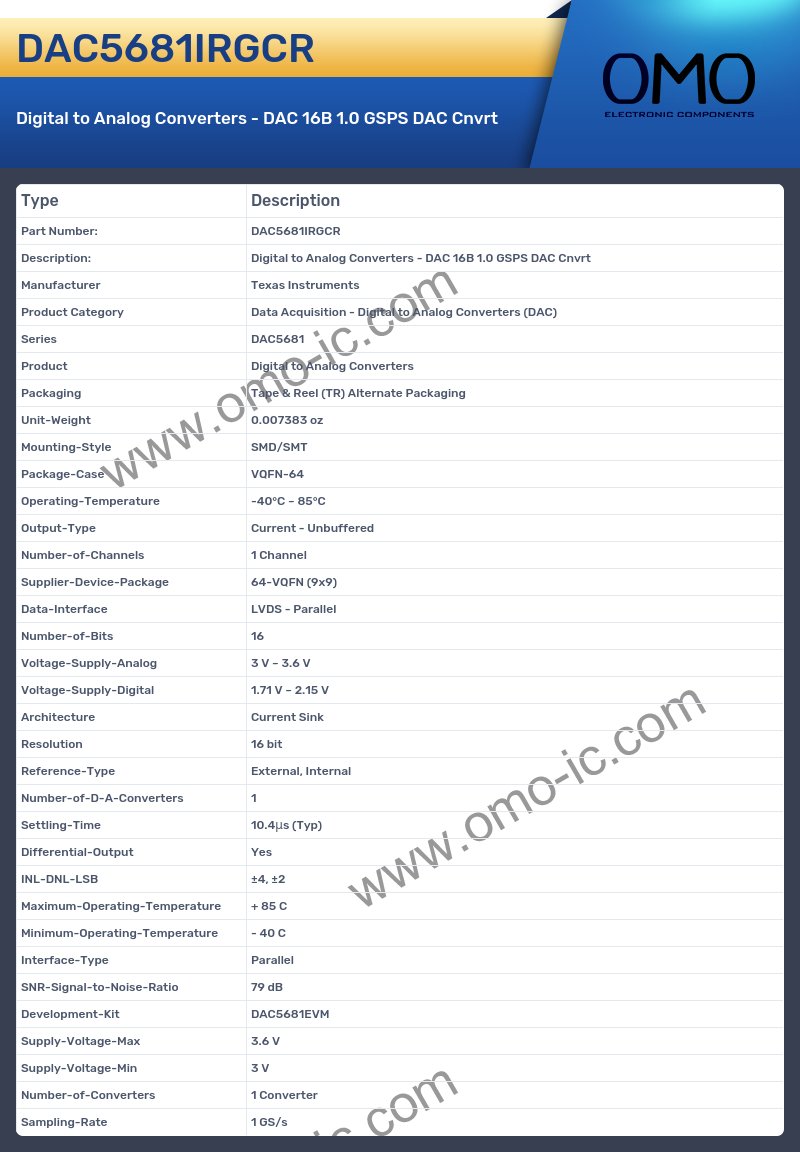

DAC5681IRGCR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC5681
• Product Digital to Analog Converters
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.007383 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-64
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-VQFN (9x9)
• Data-Interface LVDS - Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 1.71 V ~ 2.15 V
• Architecture Current Sink
• Resolution 16 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 10.4μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±4, ±2
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 79 dB
• Development-Kit DAC5681EVM
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 1 Converter
• Sampling-Rate 1 GS/s
