DAC5675IPHPG4

DAC5675IPHPG4 Overview

Product belongs to the DAC5675 series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.004744 oz SMD/SMT Mounting-Style HTQFP-48 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 48-HTQFP (7x7) Data-Interface: LVDS - Parallel 14 bits The Voltage-Supply-Analog is 3.15 V ~ 3.6 V. The Voltage Supply Digital for this product is 3.15 V ~ 3.6 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 12μs (Typ) is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Maximum supply voltage of 3.6 V Minimum supply voltage is 3.15 V Number-of-Converters: 1 Converter 400 MS/s Sampling Rate

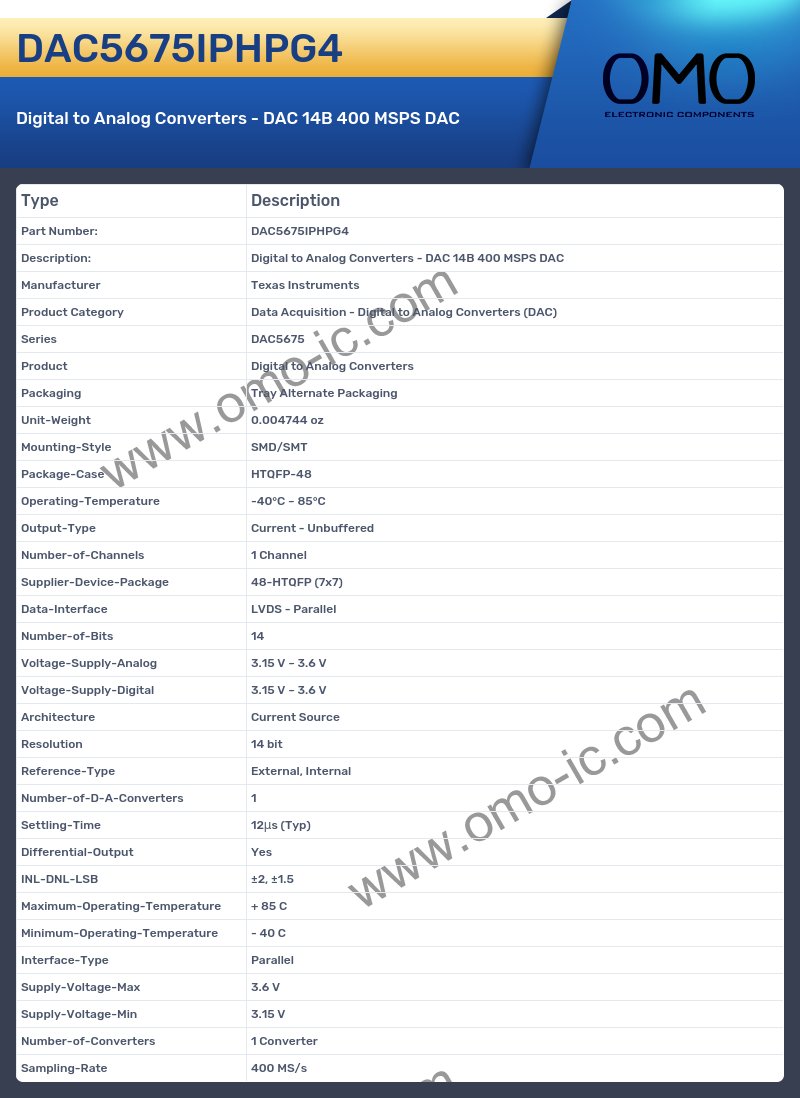

DAC5675IPHPG4 Image

DAC5675IPHPG4 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC5675
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.004744 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-48
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-HTQFP (7x7)
• Data-Interface LVDS - Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3.15 V ~ 3.6 V
• Voltage-Supply-Digital 3.15 V ~ 3.6 V
• Architecture Current Source
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 12μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±2, ±1.5
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3.15 V
• Number-of-Converters 1 Converter
• Sampling-Rate 400 MS/s
