DAC312HPZ

DAC312HPZ Overview

Product belongs to the DAC312 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style PDIP-20 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 20-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 4.5 V ~ 18 V, -10.8 V ~ 18 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 500μs is an impressive 15 us. Yes Differential-Output Power-off control: 375 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 3.9 mA is 92 nA. Parallel interface type Maximum supply voltage of 18 V Minimum supply voltage is 4.5 V Number-of-Converters: 1 Converter Reference voltage is - 15 V to + 14 V .

DAC312HPZ Image

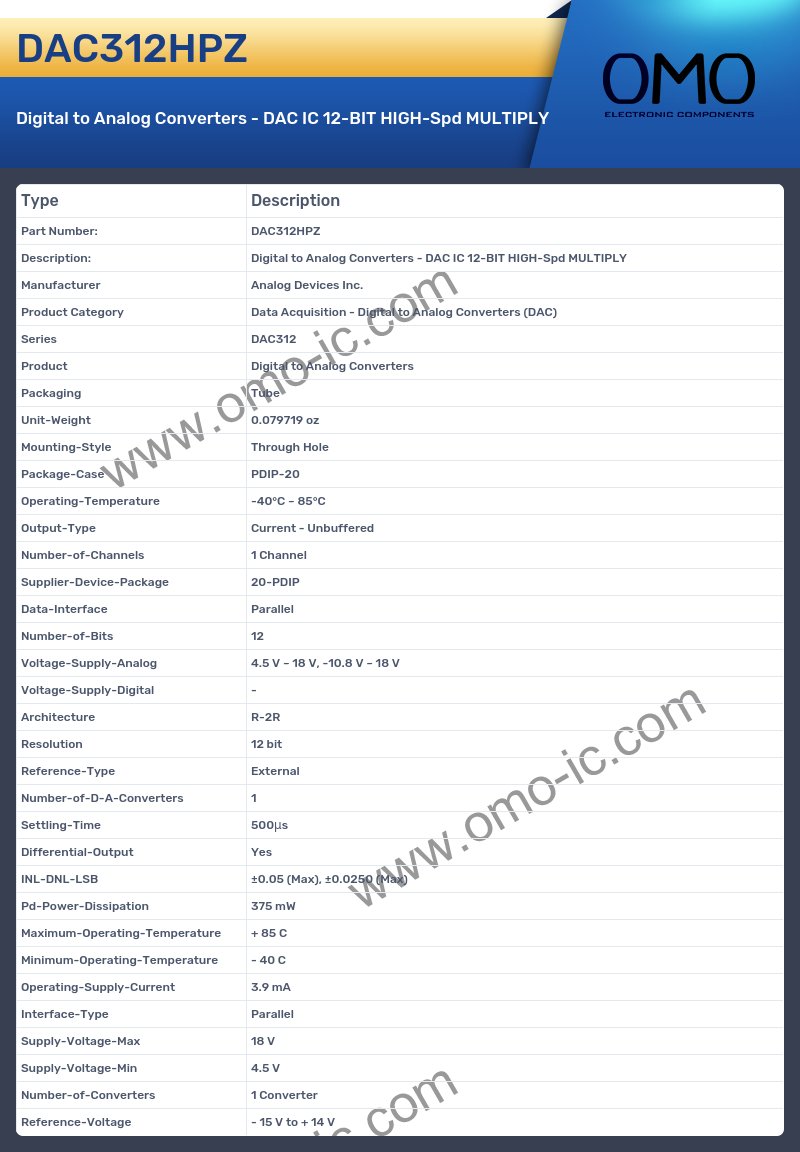

DAC312HPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series DAC312
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.079719 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 4.5 V ~ 18 V, -10.8 V ~ 18 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 500μs
• Differential-Output Yes
• INL-DNL-LSB ±0.05 (Max), ±0.0250 (Max)
• Pd-Power-Dissipation 375 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3.9 mA
• Interface-Type Parallel
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 1 Converter
• Reference-Voltage - 15 V to + 14 V
