CY2309CSXC-1

CY2309CSXC-1 Overview

Product belongs to the CY2309CSXC series. Type: Fanout Buffer (Distribution), Zero Delay Buffer Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 3.6 V Supplier device package: 16-SOIC Input type: LVCMOS, LVTTL The LVCMOS. 1 is 8. The Ratio-Input:Output for this product is 1899/12/30 1:09:00. Differential input and output are both available: No/No Maximum frequency of 133.33MHz No/No Divider-Multiplier Number-of-Outputs: 9 Output Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 32 mA is 92 nA. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Maximum-Input-Frequency: 133 MHz Maximum duty cycle of 60 % Maximum output frequency is 133 MHz.

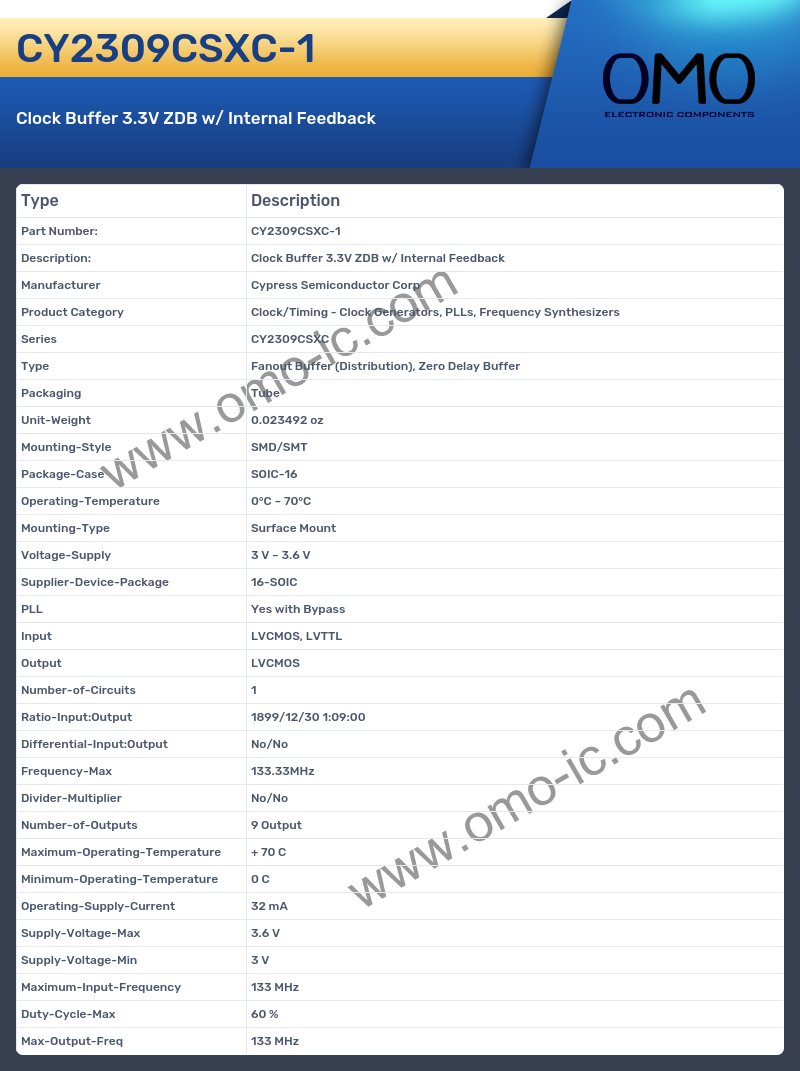

CY2309CSXC-1 Image

CY2309CSXC-1 Specifications

• Manufacturer Cypress Semiconductor Corp
• Product Category Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
• Series CY2309CSXC
• Type Fanout Buffer (Distribution), Zero Delay Buffer
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Voltage-Supply 3 V ~ 3.6 V
• Supplier-Device-Package 16-SOIC
• PLL Yes with Bypass
• Input LVCMOS, LVTTL
• Output LVCMOS
• Number-of-Circuits 1
• Ratio-Input:Output 1899/12/30 1:09:00
• Differential-Input:Output No/No
• Frequency-Max 133.33MHz
• Divider-Multiplier No/No
• Number-of-Outputs 9 Output
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 32 mA
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Maximum-Input-Frequency 133 MHz
• Duty-Cycle-Max 60 %
• Max-Output-Freq 133 MHz
