| Mfr. #: | CSD22204WT |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | MOSFET P-CH 8V 9DSBGA |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | CSD22204WT Ficha de datos |
Product belongs to the CSD22204W series. Reel is the packaging method for this product SMD/SMT Mounting-Style Trade name: NexFET. DSBGA-9 Si is the technology used. Number of channels: 1 Channel Configuration Single Transistor type: 1 P-Channel Power-off control: 1.7 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 2.29 us of 16 ns. This product has a 600 ns of 16 ns. This product's - 6 V. The ID of continuous drain current is - 5 A. This product has a Vds-Drain-Source-Breakdown-Voltageof - 8 V. This product has a - 450 mV Vgs-th gate-source threshold voltage for efficient power management. The 14 mOhms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 3.45 us This product has a 58 ns. Qg-Gate-Charge is 18.9 nC. This product features a 18 S of 500 S for high performance. This product operates in Enhancement channel mode for optimal performance.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

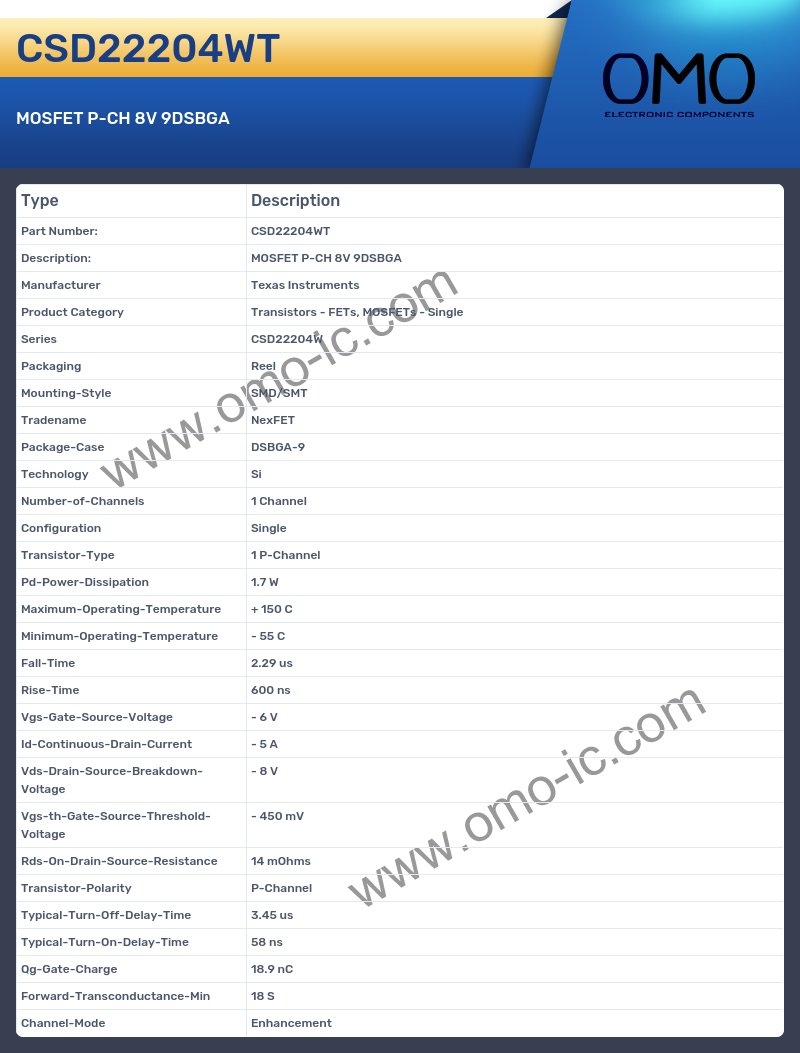

CSD22204WT Specifications
A: What is the Series of the product?
Q: The Series of the product is CSD22204W.
A: At what frequency does the Packaging?
Q: The product Packaging is Reel.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Tradename of the product?
Q: The Tradename of the product is NexFET.
A: At what frequency does the Package-Case?
Q: The product Package-Case is DSBGA-9.
A: What is the Technology of the product?
Q: The Technology of the product is Si.
A: At what frequency does the Number-of-Channels?
Q: The product Number-of-Channels is 1 Channel.
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 1 P-Channel.
A: Is the cutoff frequency of the product Pd-Power-Dissipation?
Q: Yes, the product's Pd-Power-Dissipation is indeed 1.7 W
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Fall-Time?
Q: The product Fall-Time is 2.29 us.
A: What is the Rise-Time of the product?
Q: The Rise-Time of the product is 600 ns.
A: Is the cutoff frequency of the product Vgs-Gate-Source-Voltage?
Q: Yes, the product's Vgs-Gate-Source-Voltage is indeed - 6 V
A: What is the Id-Continuous-Drain-Current of the product?
Q: The Id-Continuous-Drain-Current of the product is - 5 A.
A: At what frequency does the Vds-Drain-Source-Breakdown-Voltage?
Q: The product Vds-Drain-Source-Breakdown-Voltage is - 8 V.
A: At what frequency does the Vgs-th-Gate-Source-Threshold-Voltage?
Q: The product Vgs-th-Gate-Source-Threshold-Voltage is - 450 mV.
A: At what frequency does the Rds-On-Drain-Source-Resistance?
Q: The product Rds-On-Drain-Source-Resistance is 14 mOhms.
A: At what frequency does the Transistor-Polarity?
Q: The product Transistor-Polarity is P-Channel.
A: At what frequency does the Typical-Turn-Off-Delay-Time?
Q: The product Typical-Turn-Off-Delay-Time is 3.45 us.
A: What is the Typical-Turn-On-Delay-Time of the product?
Q: The Typical-Turn-On-Delay-Time of the product is 58 ns.
A: At what frequency does the Qg-Gate-Charge?
Q: The product Qg-Gate-Charge is 18.9 nC.
A: What is the Forward-Transconductance-Min of the product?
Q: The Forward-Transconductance-Min of the product is 18 S.
A: Is the cutoff frequency of the product Channel-Mode?
Q: Yes, the product's Channel-Mode is indeed Enhancement
