RoHS compliant with Details Input bias current of SMD/SMT Package type is VSON-FET-8 Single 1 Channel for basic signal processing The transistor polarity is N-Channel. 30 V is the Vds - Drain-Source Breakdown Voltage Continuous Drain Current identified as 28 A; The Rds On - Drain-Source Resistance of the product is 3.7 mOhms. The Vgs - Gate-Source Voltage attribute for this product is 20 V. The 1.3 V Gate-Source Threshold Voltage of Vgs th; 13.2 nC Gate Charge of Qg; Maximum Operating Temperature: + 150 C Si is the technology used. Reel is the packaging method for this product Configuration Single Fall Time of 7.9 ns Minimum Forward Transconductance of 110 S. - 55 C minimum operating temperature The power dissipation is 3.2 W. 17 ns Rise Time Product belongs to the CSD17501Q5A series. Trade name: NexFET. 1 N-Channel Transistor Type Typical Turn-Off Delay Time of 18 ns; The 10.4 ns typical turn-on delay time
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

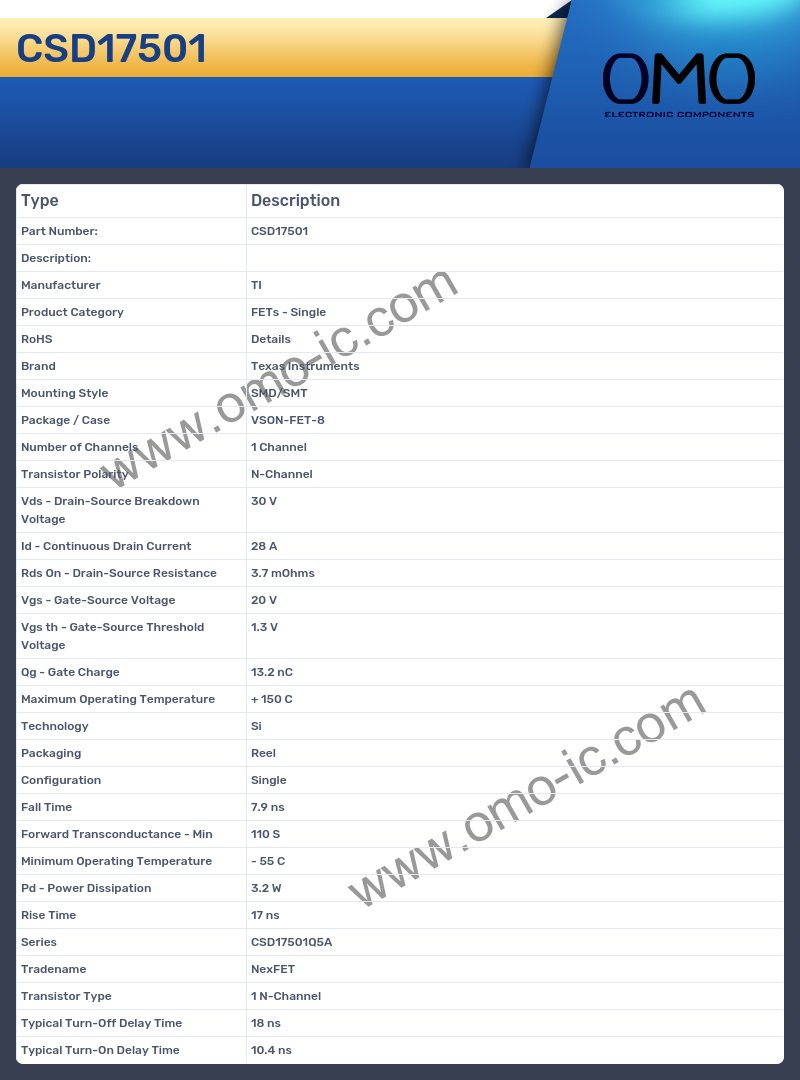

CSD17501 Specifications
A: What is the RoHS of the product?
Q: The RoHS of the product is Details.
A: At what frequency does the Mounting Style?
Q: The product Mounting Style is SMD/SMT.
A: At what frequency does the Package / Case?
Q: The product Package / Case is VSON-FET-8.
A: Is the cutoff frequency of the product Number of Channels?
Q: Yes, the product's Number of Channels is indeed 1 Channel
A: Is the cutoff frequency of the product Transistor Polarity?
Q: Yes, the product's Transistor Polarity is indeed N-Channel
A: Is the cutoff frequency of the product Vds - Drain-Source Breakdown Voltage?
Q: Yes, the product's Vds - Drain-Source Breakdown Voltage is indeed 30 V
A: Is the cutoff frequency of the product Id - Continuous Drain Current?
Q: Yes, the product's Id - Continuous Drain Current is indeed 28 A
A: What is the Rds On - Drain-Source Resistance of the product?
Q: The Rds On - Drain-Source Resistance of the product is 3.7 mOhms.
A: What is the Vgs - Gate-Source Voltage of the product?
Q: The Vgs - Gate-Source Voltage of the product is 20 V.
A: Is the cutoff frequency of the product Vgs th - Gate-Source Threshold Voltage?
Q: Yes, the product's Vgs th - Gate-Source Threshold Voltage is indeed 1.3 V
A: At what frequency does the Qg - Gate Charge?
Q: The product Qg - Gate Charge is 13.2 nC.
A: What is the Maximum Operating Temperature of the product?
Q: The Maximum Operating Temperature of the product is + 150 C.
A: Is the cutoff frequency of the product Technology?
Q: Yes, the product's Technology is indeed Si
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Reel
A: What is the Configuration of the product?
Q: The Configuration of the product is Single.
A: What is the Fall Time of the product?
Q: The Fall Time of the product is 7.9 ns.
A: At what frequency does the Forward Transconductance - Min?
Q: The product Forward Transconductance - Min is 110 S.
A: What is the Minimum Operating Temperature of the product?
Q: The Minimum Operating Temperature of the product is - 55 C.
A: At what frequency does the Pd - Power Dissipation?
Q: The product Pd - Power Dissipation is 3.2 W.
A: Is the cutoff frequency of the product Rise Time?
Q: Yes, the product's Rise Time is indeed 17 ns
A: At what frequency does the Series?
Q: The product Series is CSD17501Q5A.
A: What is the Tradename of the product?
Q: The Tradename of the product is NexFET.
A: Is the cutoff frequency of the product Transistor Type?
Q: Yes, the product's Transistor Type is indeed 1 N-Channel
A: What is the Typical Turn-Off Delay Time of the product?
Q: The Typical Turn-Off Delay Time of the product is 18 ns.
A: At what frequency does the Typical Turn-On Delay Time?
Q: The product Typical Turn-On Delay Time is 10.4 ns.
