CD74AC02MG4

CD74AC02MG4 Overview

Product belongs to the 74AC series. Tube Alternate Packaging is the packaging method for this product 14-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 1.5 V ~ 5.5 V Supplier device package: 14-SOIC 4 is 8. 4μA maximum quiescent current. NOR Gate logic type 0.3 V ~ 1.65 V is a Logic-Level-Low; 1.2 V ~ 3.85 V is the Logic-Level-High

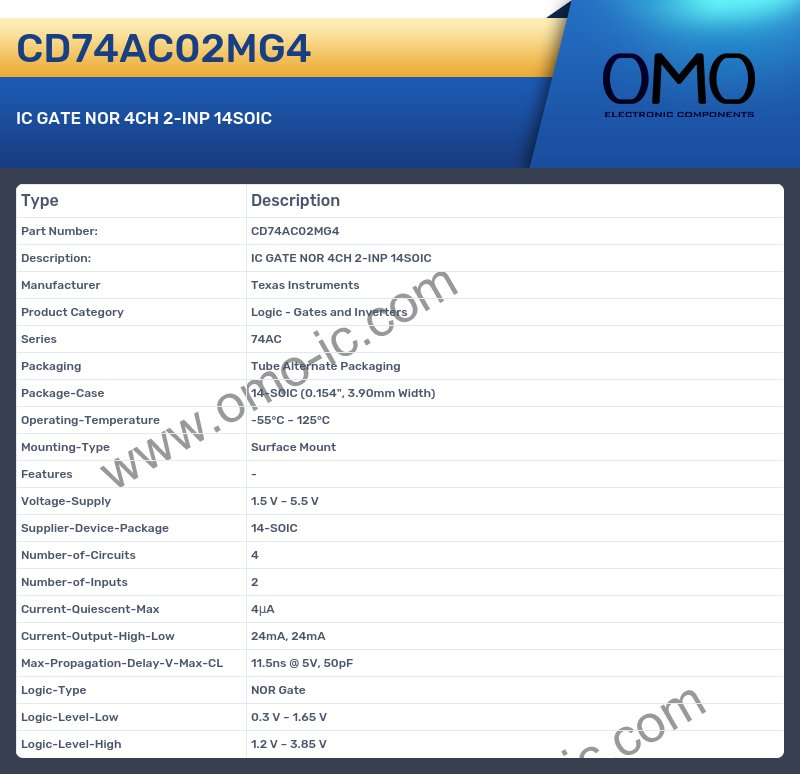

CD74AC02MG4 Image

CD74AC02MG4 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 74AC
• Packaging Tube Alternate Packaging
• Package-Case 14-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 1.5 V ~ 5.5 V
• Supplier-Device-Package 14-SOIC
• Number-of-Circuits 4
• Number-of-Inputs 2
• Current-Quiescent-Max 4μA
• Current-Output-High-Low 24mA, 24mA
• Max-Propagation-Delay-V-Max-CL 11.5ns @ 5V, 50pF
• Logic-Type NOR Gate
• Logic-Level-Low 0.3 V ~ 1.65 V
• Logic-Level-High 1.2 V ~ 3.85 V
