CD4072BPWR

CD4072BPWR Overview

Product belongs to the 4000B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 14-TSSOP (0.173", 4.40mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-TSSOP 2 is 8. 1μA maximum quiescent current. OR Gate logic type 1.5 V ~ 4 V is a Logic-Level-Low; 3.5 V ~ 11 V is the Logic-Level-High

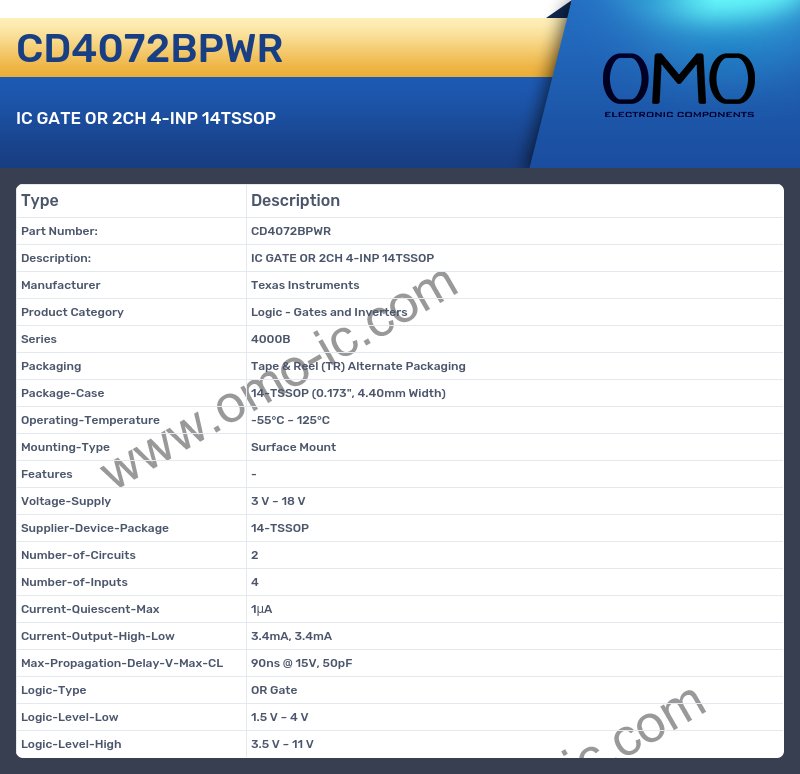

CD4072BPWR Image

CD4072BPWR Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 4000B
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 14-TSSOP (0.173", 4.40mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 14-TSSOP
• Number-of-Circuits 2
• Number-of-Inputs 4
• Current-Quiescent-Max 1μA
• Current-Output-High-Low 3.4mA, 3.4mA
• Max-Propagation-Delay-V-Max-CL 90ns @ 15V, 50pF
• Logic-Type OR Gate
• Logic-Level-Low 1.5 V ~ 4 V
• Logic-Level-High 3.5 V ~ 11 V
