| Mfr. #: | CD4066BPW |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Analog Switch ICs CMOS Quad Bilateral |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | CD4066BPW Ficha de datos |
Product belongs to the 4000B series. Type: Bilateral, FET Switches Tube Alternate Packaging is the packaging method for this product Weight of 0.002018 oz SMD/SMT Mounting-Style TSSOP-14 Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 14-TSSOP Voltage supply source: Analog and digital Dual Supply Configuration 4 x SPST Circuit type: 1 x 1:1 4 Independent Circuit Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product operates at a 3 V to 18 V supply voltage for reliable performance. Maximum supply current: 5 uA Maximum supply voltage of 18 V Minimum supply voltage is 3 V Single Supply Dual Supply supply type Max on-resistance of 240 Ohms Maximum off time: 30 ns 4 Switch switch functionality Maximum on-time: 30 ns The maximum switch voltage for this product is 15 V The +/- 7.5 V.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

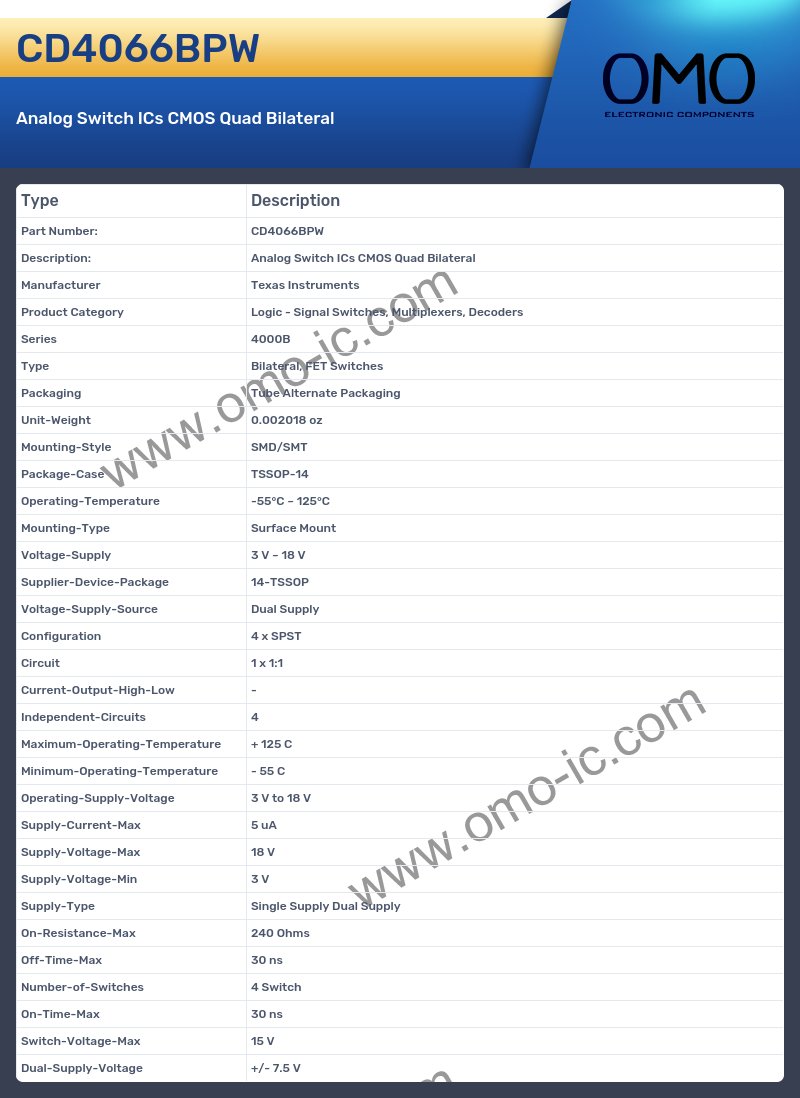

CD4066BPW Specifications
A: At what frequency does the Series?
Q: The product Series is 4000B.
A: What is the Type of the product?
Q: The Type of the product is Bilateral, FET Switches.
A: At what frequency does the Packaging?
Q: The product Packaging is Tube Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.002018 oz.
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TSSOP-14
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -55°C ~ 125°C
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Surface Mount.
A: Is the cutoff frequency of the product Voltage-Supply?
Q: Yes, the product's Voltage-Supply is indeed 3 V ~ 18 V
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 14-TSSOP.
A: Is the cutoff frequency of the product Voltage-Supply-Source?
Q: Yes, the product's Voltage-Supply-Source is indeed Dual Supply
A: What is the Configuration of the product?
Q: The Configuration of the product is 4 x SPST.
A: What is the Circuit of the product?
Q: The Circuit of the product is 1 x 1:1.
A: At what frequency does the Independent-Circuits?
Q: The product Independent-Circuits is 4.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 125 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 55 C.
A: What is the Operating-Supply-Voltage of the product?
Q: The Operating-Supply-Voltage of the product is 3 V to 18 V.
A: Is the cutoff frequency of the product Supply-Current-Max?
Q: Yes, the product's Supply-Current-Max is indeed 5 uA
A: Is the cutoff frequency of the product Supply-Voltage-Max?
Q: Yes, the product's Supply-Voltage-Max is indeed 18 V
A: At what frequency does the Supply-Voltage-Min?
Q: The product Supply-Voltage-Min is 3 V.
A: What is the Supply-Type of the product?
Q: The Supply-Type of the product is Single Supply Dual Supply.
A: At what frequency does the On-Resistance-Max?
Q: The product On-Resistance-Max is 240 Ohms.
A: At what frequency does the Off-Time-Max?
Q: The product Off-Time-Max is 30 ns.
A: At what frequency does the Number-of-Switches?
Q: The product Number-of-Switches is 4 Switch.
A: Is the cutoff frequency of the product On-Time-Max?
Q: Yes, the product's On-Time-Max is indeed 30 ns
A: At what frequency does the Switch-Voltage-Max?
Q: The product Switch-Voltage-Max is 15 V.
A: What is the Dual-Supply-Voltage of the product?
Q: The Dual-Supply-Voltage of the product is +/- 7.5 V.
