CD4009UBM96

CD4009UBM96 Overview

Product belongs to the 4000B series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 16-SOIC (0.154", 3.90mm Width) Operational temperature range: -55°C ~ 125°C Surface Mount mounting type Voltage Supply Range: 3 V ~ 18 V Supplier device package: 16-SOIC 6 is 8. 4μA maximum quiescent current. Inverter logic type 1 V ~ 2.5 V is a Logic-Level-Low; 4 V ~ 12.5 V is the Logic-Level-High

CD4009UBM96 Image

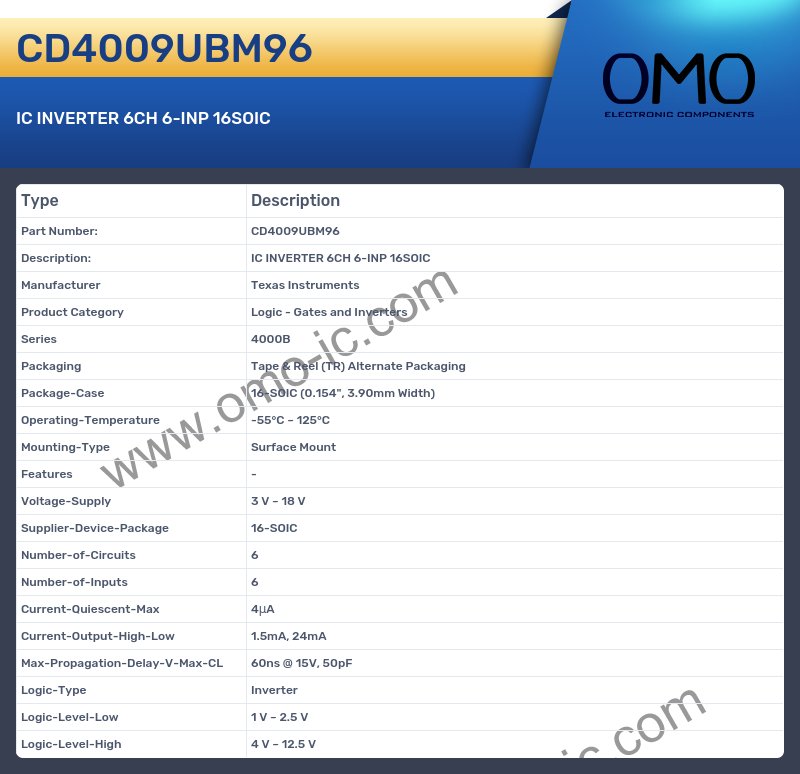

CD4009UBM96 Specifications

• Manufacturer Texas Instruments
• Product Category Logic - Gates and Inverters
• Series 4000B
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -55°C ~ 125°C
• Mounting-Type Surface Mount
• Features -
• Voltage-Supply 3 V ~ 18 V
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits 6
• Number-of-Inputs 6
• Current-Quiescent-Max 4μA
• Current-Output-High-Low 1.5mA, 24mA
• Max-Propagation-Delay-V-Max-CL 60ns @ 15V, 50pF
• Logic-Type Inverter
• Logic-Level-Low 1 V ~ 2.5 V
• Logic-Level-High 4 V ~ 12.5 V
