BZW50-15B

BZW50-15B Overview

Product belongs to the BZW50, TRANSIL series. Type: Zener Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.072241 oz Through Hole Mounting-Style This product's Termination-Style is ' Axial ' for easy integration into your design. Trade name: Transil. Wide - 65 C to + 175 C operating temperature range for diverse applications 9.1 mm length of the product The 9.1 mm is at most 7.6 mm. R6, Axial Operational temperature range: - Through Hole mounting type Versatile General Purpose applications for maximum usability Supplier device package: R-6 1 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 15V. The Voltage-Breakdown-Min is 16.6V. No Power-Line-Protection 6750pF @ 1MHz Capacitance-Frequency Power-off control: 5 kW Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Breakdown-Voltage: 16.6 V Clamping-Voltage: 35 V 1.714 kA Peak Surge Current 15 V working voltage Polarity: Bidirectional

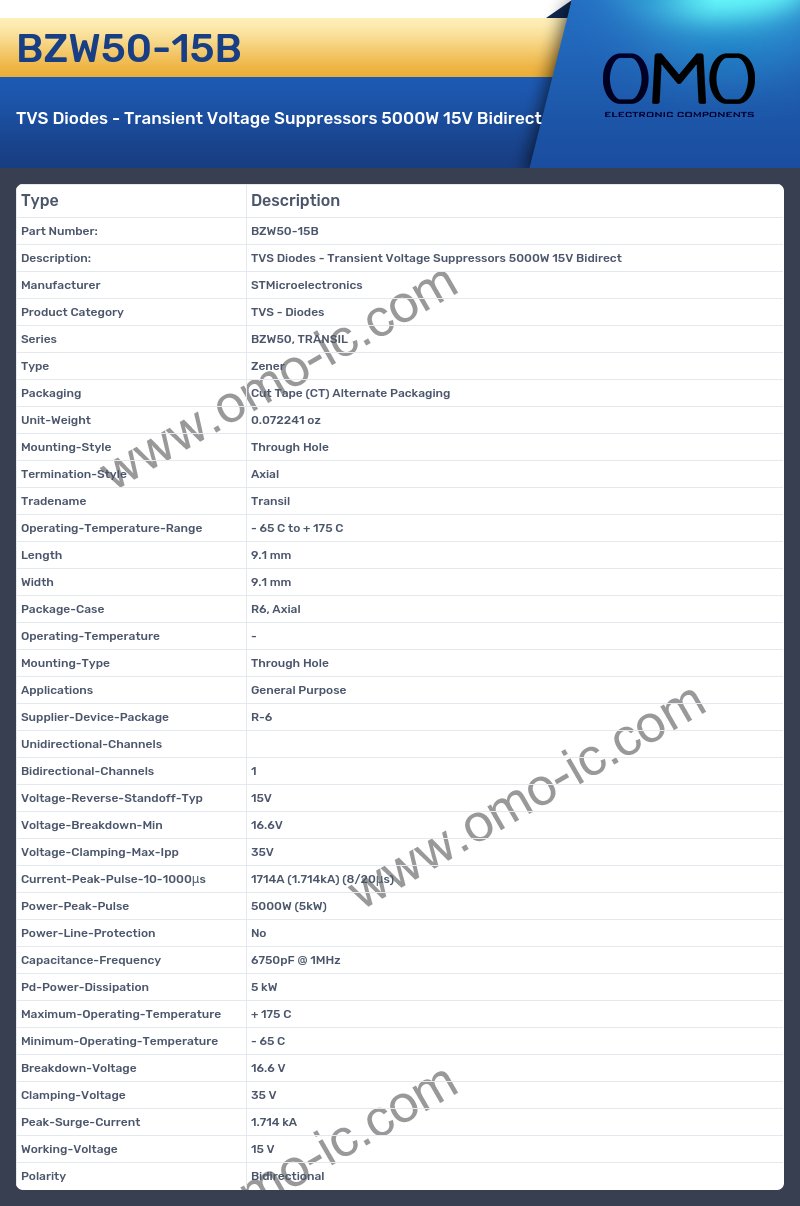

BZW50-15B Image

BZW50-15B Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series BZW50, TRANSIL
• Type Zener
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.072241 oz
• Mounting-Style Through Hole
• Termination-Style Axial
• Tradename Transil
• Operating-Temperature-Range - 65 C to + 175 C
• Length 9.1 mm
• Width 9.1 mm
• Package-Case R6, Axial
• Operating-Temperature -
• Mounting-Type Through Hole
• Applications General Purpose
• Supplier-Device-Package R-6
• Unidirectional-Channels
• Bidirectional-Channels 1
• Voltage-Reverse-Standoff-Typ 15V
• Voltage-Breakdown-Min 16.6V
• Voltage-Clamping-Max-Ipp 35V
• Current-Peak-Pulse-10-1000μs 1714A (1.714kA) (8/20μs)
• Power-Peak-Pulse 5000W (5kW)
• Power-Line-Protection No
• Capacitance-Frequency 6750pF @ 1MHz
• Pd-Power-Dissipation 5 kW
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Breakdown-Voltage 16.6 V
• Clamping-Voltage 35 V
• Peak-Surge-Current 1.714 kA
• Working-Voltage 15 V
• Polarity Bidirectional
