| Mfr. #: | BD680A |
|---|---|
| Fabricante: | STMicroelectronics |
| Descripción: | Darlington Transistors PNP Power Darlington |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | BD680A Ficha de datos |
Product belongs to the BD680A series. Bulk is the packaging method for this product Through Hole Mounting-Style TO-225AA, TO-126-3 Through Hole mounting type Supplier device package: TO-225AA Configuration Single Transistor type: PNP - Darlington Maximum current collector Ic is 4A . Maximum collector-emitter breakdown voltage of 80V DC current gain minimum (hFE) of Ic/Vce at 750 @ 2A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 2.8V @ 40mA, 2A Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 80 V The transistor polarity is PNP. The 80 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 4 A Minimum hfe for DC collector-base gain is 750. 200 uA Maximum Collector Cut-off Current;
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

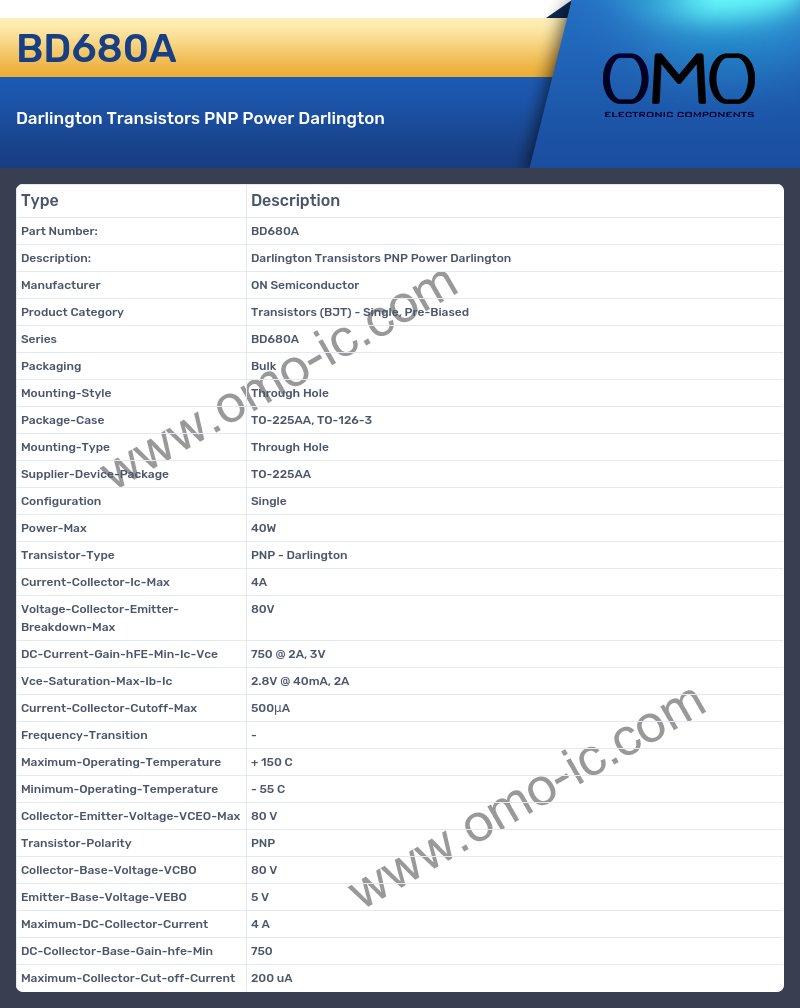

BD680A Specifications
A: At what frequency does the Series?
Q: The product Series is BD680A.
A: What is the Packaging of the product?
Q: The Packaging of the product is Bulk.
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed Through Hole
A: At what frequency does the Package-Case?
Q: The product Package-Case is TO-225AA, TO-126-3.
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Through Hole
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is TO-225AA.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Single
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is PNP - Darlington.
A: At what frequency does the Current-Collector-Ic-Max?
Q: The product Current-Collector-Ic-Max is 4A.
A: What is the Voltage-Collector-Emitter-Breakdown-Max of the product?
Q: The Voltage-Collector-Emitter-Breakdown-Max of the product is 80V.
A: What is the DC-Current-Gain-hFE-Min-Ic-Vce of the product?
Q: The DC-Current-Gain-hFE-Min-Ic-Vce of the product is 750 @ 2A, 3V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 2.8V @ 40mA, 2A
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 150 C.
A: At what frequency does the Minimum-Operating-Temperature?
Q: The product Minimum-Operating-Temperature is - 55 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 80 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is PNP.
A: What is the Collector-Base-Voltage-VCBO of the product?
Q: The Collector-Base-Voltage-VCBO of the product is 80 V.
A: What is the Emitter-Base-Voltage-VEBO of the product?
Q: The Emitter-Base-Voltage-VEBO of the product is 5 V.
A: At what frequency does the Maximum-DC-Collector-Current?
Q: The product Maximum-DC-Collector-Current is 4 A.
A: At what frequency does the DC-Collector-Base-Gain-hfe-Min?
Q: The product DC-Collector-Base-Gain-hfe-Min is 750.
A: What is the Maximum-Collector-Cut-off-Current of the product?
Q: The Maximum-Collector-Cut-off-Current of the product is 200 uA.
