BD135

BD135 Overview

Tube is the packaging method for this product The BD13510STU_NL is listed as a Part-Aliase. Weight of 0.026843 oz Through Hole Mounting-Style TO-126 Configuration Single Power-off control: 12.5 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C Rated VCEO up to 45 V The transistor polarity is NPN. Saturation voltage between collector and emitter is 0.5 V The 45 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 1.5 A This product is capable of handling a 1.5 A continuous collector current. Minimum hfe for DC collector-base gain is 40. 250 of 605.

BD135 Image

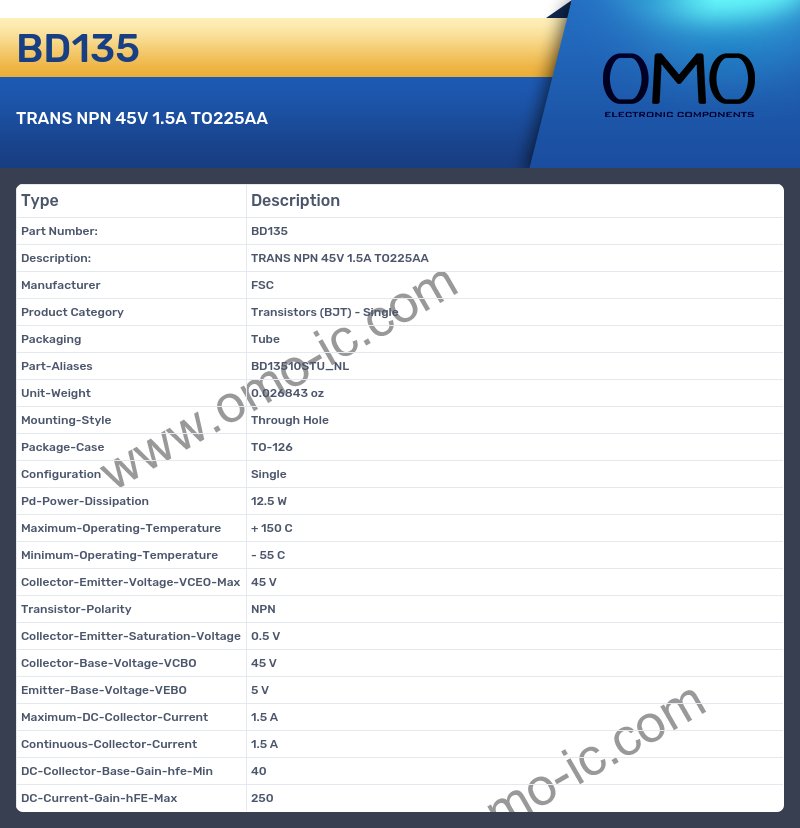

BD135 Specifications

• Manufacturer FSC
• Product Category Transistors (BJT) - Single
• Packaging Tube
• Part-Aliases BD13510STU_NL
• Unit-Weight 0.026843 oz
• Mounting-Style Through Hole
• Package-Case TO-126
• Configuration Single
• Pd-Power-Dissipation 12.5 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Collector-Emitter-Voltage-VCEO-Max 45 V
• Transistor-Polarity NPN
• Collector-Emitter-Saturation-Voltage 0.5 V
• Collector-Base-Voltage-VCBO 45 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 1.5 A
• Continuous-Collector-Current 1.5 A
• DC-Collector-Base-Gain-hfe-Min 40
• DC-Current-Gain-hFE-Max 250
