ATSAMS70Q19A-ANT

ATSAMS70Q19A-ANT Overview

Product belongs to the SAM S70 series. Digi-ReelR Alternate Packaging is the packaging method for this product 144-LQFP Operational temperature range: -40°C ~ 105°C (TA) Supplier device package: 144-LQFP (20x20) This product has 114 I/O ports for versatile connectivity. Operating frequency: 300MHz Program memory type: FLASH EBI/EMI, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB interface Supply Voltage: 1.62 V ~ 3.6 V 32-Bit architecture Internal oscillator type

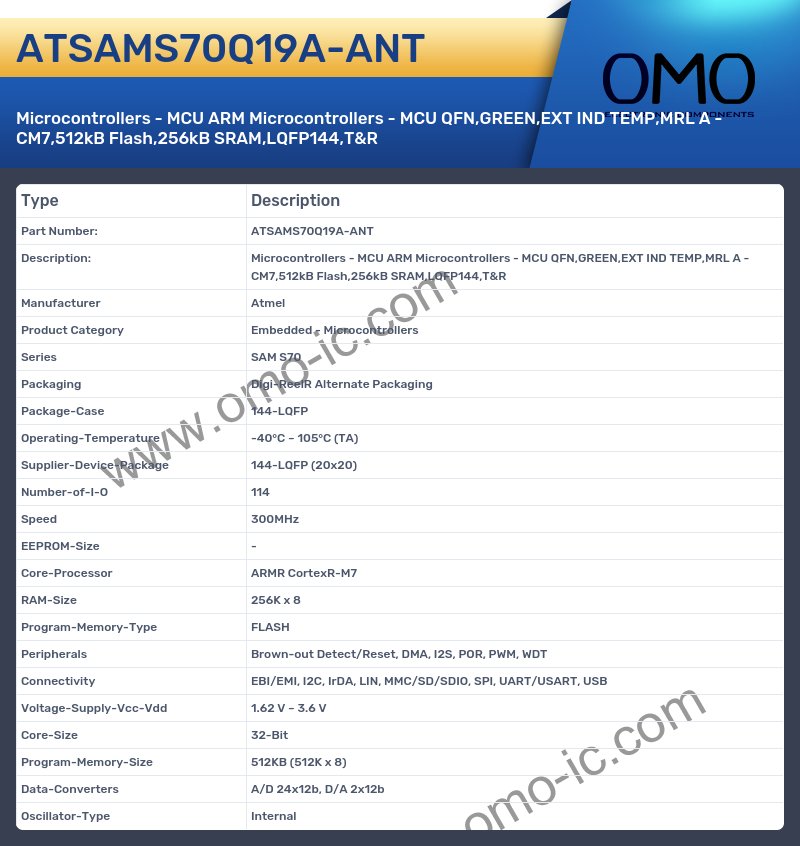

ATSAMS70Q19A-ANT Image

ATSAMS70Q19A-ANT Specifications

• Manufacturer Atmel
• Product Category Embedded - Microcontrollers
• Series SAM S70
• Packaging Digi-ReelR Alternate Packaging
• Package-Case 144-LQFP
• Operating-Temperature -40°C ~ 105°C (TA)
• Supplier-Device-Package 144-LQFP (20x20)
• Number-of-I-O 114
• Speed 300MHz
• EEPROM-Size -
• Core-Processor ARMR CortexR-M7
• RAM-Size 256K x 8
• Program-Memory-Type FLASH
• Peripherals Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
• Connectivity EBI/EMI, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB
• Voltage-Supply-Vcc-Vdd 1.62 V ~ 3.6 V
• Core-Size 32-Bit
• Program-Memory-Size 512KB (512K x 8)
• Data-Converters A/D 24x12b, D/A 2x12b
• Oscillator-Type Internal

ATSAMS70Q19A-ANT FAQ

• A: What is the Series of the product?

  Q: The Series of the product is SAM S70.

• A: What is the Packaging of the product?

  Q: The Packaging of the product is Digi-ReelR Alternate Packaging.

• A: What is the Package-Case of the product?

  Q: The Package-Case of the product is 144-LQFP.

• A: What is the Operating-Temperature of the product?

  Q: The Operating-Temperature of the product is -40°C ~ 105°C (TA).

• A: What is the Supplier-Device-Package of the product?

  Q: The Supplier-Device-Package of the product is 144-LQFP (20x20).

• A: What is the Number-of-I-O of the product?

  Q: The Number-of-I-O of the product is 114.

• A: At what frequency does the Speed?

  Q: The product Speed is 300MHz.

• A: Is the cutoff frequency of the product Program-Memory-Type?

  Q: Yes, the product's Program-Memory-Type is indeed FLASH

• A: At what frequency does the Connectivity?

  Q: The product Connectivity is EBI/EMI, I2C, IrDA, LIN, MMC/SD/SDIO, SPI, UART/USART, USB.

• A: What is the Voltage-Supply-Vcc-Vdd of the product?

  Q: The Voltage-Supply-Vcc-Vdd of the product is 1.62 V ~ 3.6 V.

• A: Is the cutoff frequency of the product Core-Size?

  Q: Yes, the product's Core-Size is indeed 32-Bit

• A: At what frequency does the Oscillator-Type?

  Q: The product Oscillator-Type is Internal.
