ADUC7121BBCZ

ADUC7121BBCZ Overview

Product belongs to the MicroConverterR ADuC7xxx series. Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style BGA-108 Operational temperature range: -10°C ~ 95°C (TA) Supplier device package: 108-CSPBGA (7x7) This product has 32 I/O ports for versatile connectivity. Operating frequency: 41.78MHz Program memory type: FLASH I2C, SPI, UART/USART interface Supply Voltage: 3 V ~ 3.6 V 16/32-Bit architecture Internal oscillator type Maximum operating temperature of + 95 C Minimum operating temperature: - 10 C I2C/SPI/UART interface type Processor Core: ARM7TDMI This product is powered by the ARM7 Processor-Series, providing high performance and efficiency. The EVAL-ADUC7121QSPZ. The 32 bit/16 bit. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V Maximum clock frequency of 40 MHz Number of ADC Channels: 9 This product has 32 I/O connections. This product has a 8192 B data RAM size, providing ample storage for complex applications. This product features 4 Timer number of timers and counters. This product features a high-precision 12 bit, ensuring accurate data conversion.

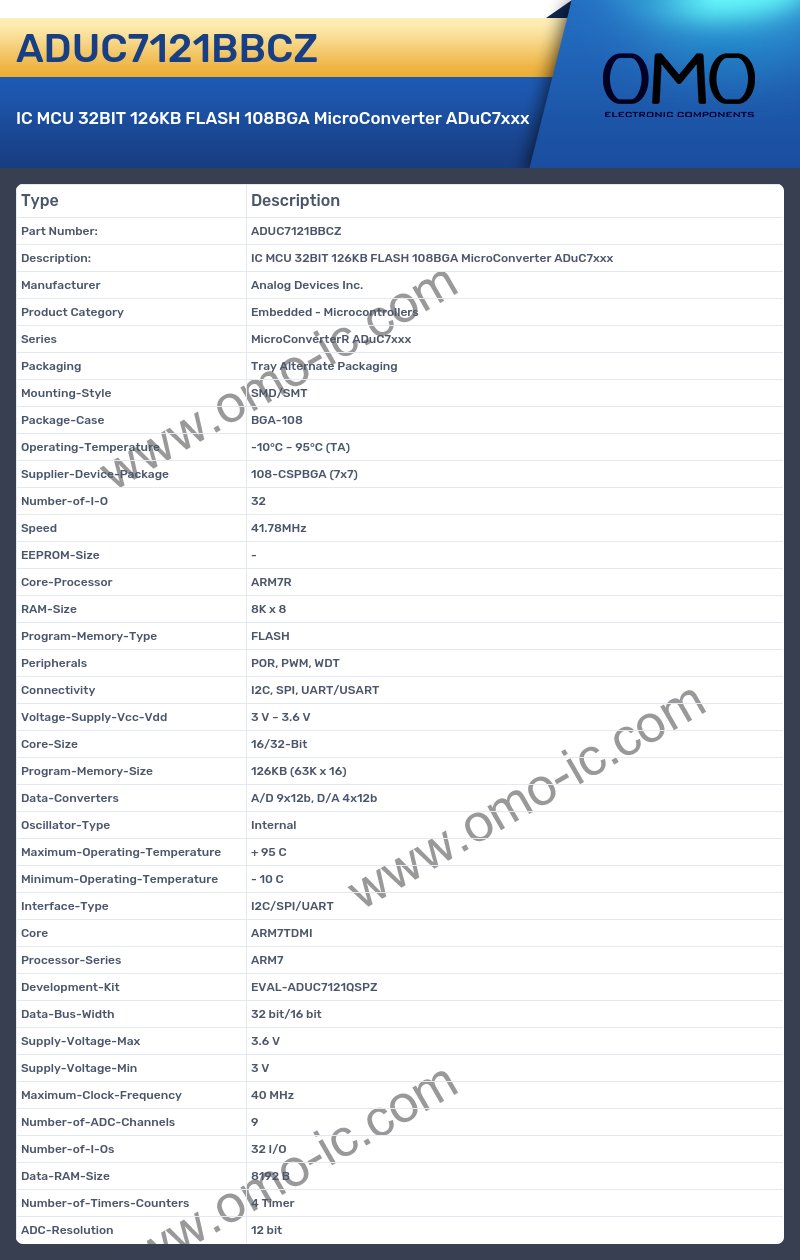

ADUC7121BBCZ Image

ADUC7121BBCZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Embedded - Microcontrollers
• Series MicroConverterR ADuC7xxx
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case BGA-108
• Operating-Temperature -10°C ~ 95°C (TA)
• Supplier-Device-Package 108-CSPBGA (7x7)
• Number-of-I-O 32
• Speed 41.78MHz
• EEPROM-Size -
• Core-Processor ARM7R
• RAM-Size 8K x 8
• Program-Memory-Type FLASH
• Peripherals POR, PWM, WDT
• Connectivity I2C, SPI, UART/USART
• Voltage-Supply-Vcc-Vdd 3 V ~ 3.6 V
• Core-Size 16/32-Bit
• Program-Memory-Size 126KB (63K x 16)
• Data-Converters A/D 9x12b, D/A 4x12b
• Oscillator-Type Internal
• Maximum-Operating-Temperature + 95 C
• Minimum-Operating-Temperature - 10 C
• Interface-Type I2C/SPI/UART
• Core ARM7TDMI
• Processor-Series ARM7
• Development-Kit EVAL-ADUC7121QSPZ
• Data-Bus-Width 32 bit/16 bit
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Maximum-Clock-Frequency 40 MHz
• Number-of-ADC-Channels 9
• Number-of-I-Os 32 I/O
• Data-RAM-Size 8192 B
• Number-of-Timers-Counters 4 Timer
• ADC-Resolution 12 bit
