ADS7844N

ADS7844N Overview

Product belongs to the ADS7844 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.005527 oz SMD/SMT Mounting-Style SSOP-20 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 20-SSOP This product's 200k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 4.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 72 dB Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Analog supply voltage: 2.7 V to 5.25 V Digital Supply Voltage: 2.7 V to 5.25 V Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 0.8 LSB

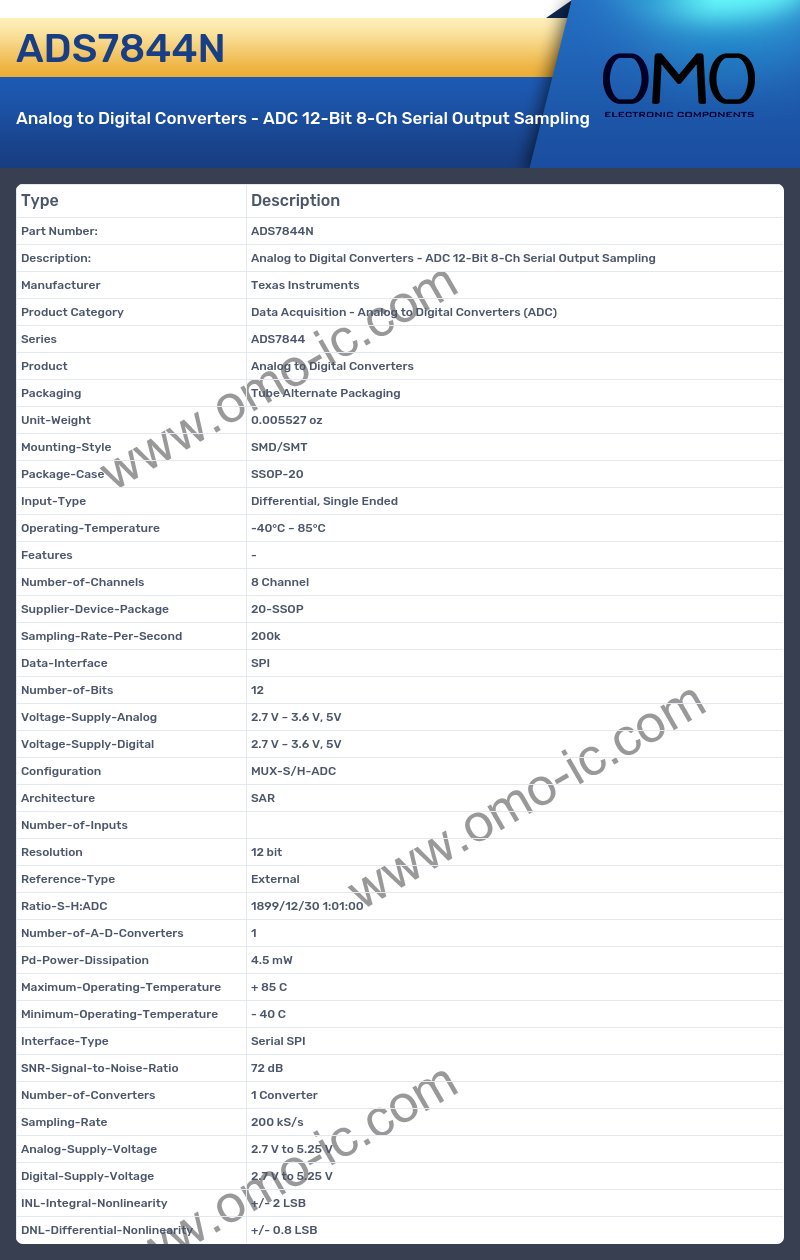

ADS7844N Image

ADS7844N Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS7844
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.005527 oz
• Mounting-Style SMD/SMT
• Package-Case SSOP-20
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 8 Channel
• Supplier-Device-Package 20-SSOP
• Sampling-Rate-Per-Second 200k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 4.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 72 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• Analog-Supply-Voltage 2.7 V to 5.25 V
• Digital-Supply-Voltage 2.7 V to 5.25 V
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 0.8 LSB
