| Mfr. #: | ADS6442IRGC25 |
|---|---|
| Fabricante: | Texas Instruments |
| Descripción: | Analog to Digital Converters - ADC Quad 14B 65MSPS ADC |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | ADS6442IRGC25 Ficha de datos |
Product belongs to the ADS6442 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.008021 oz SMD/SMT Mounting-Style VQFN-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 4 Channel Supplier device package: 64-VQFN (9x9) This product's 65M. Data-Interface: LVDS - Serial 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 3 V ~ 3.6 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 4 units Power-off control: No Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 1.05 W. Parallel Serial SPI interface type Signal-to-Noise Ratio of 74 dB The ADS6442EVM. Number-of-Converters: 4 Converter 65 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 3.3 V Integral Nonlinearity: 4.5 LSB Differential nonlinearity: 1.8 LSB ENOB is 12 bit SFDR: 88 dB Signal-to-Noise-and-Distortion-Ratio: 73.7 dB
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

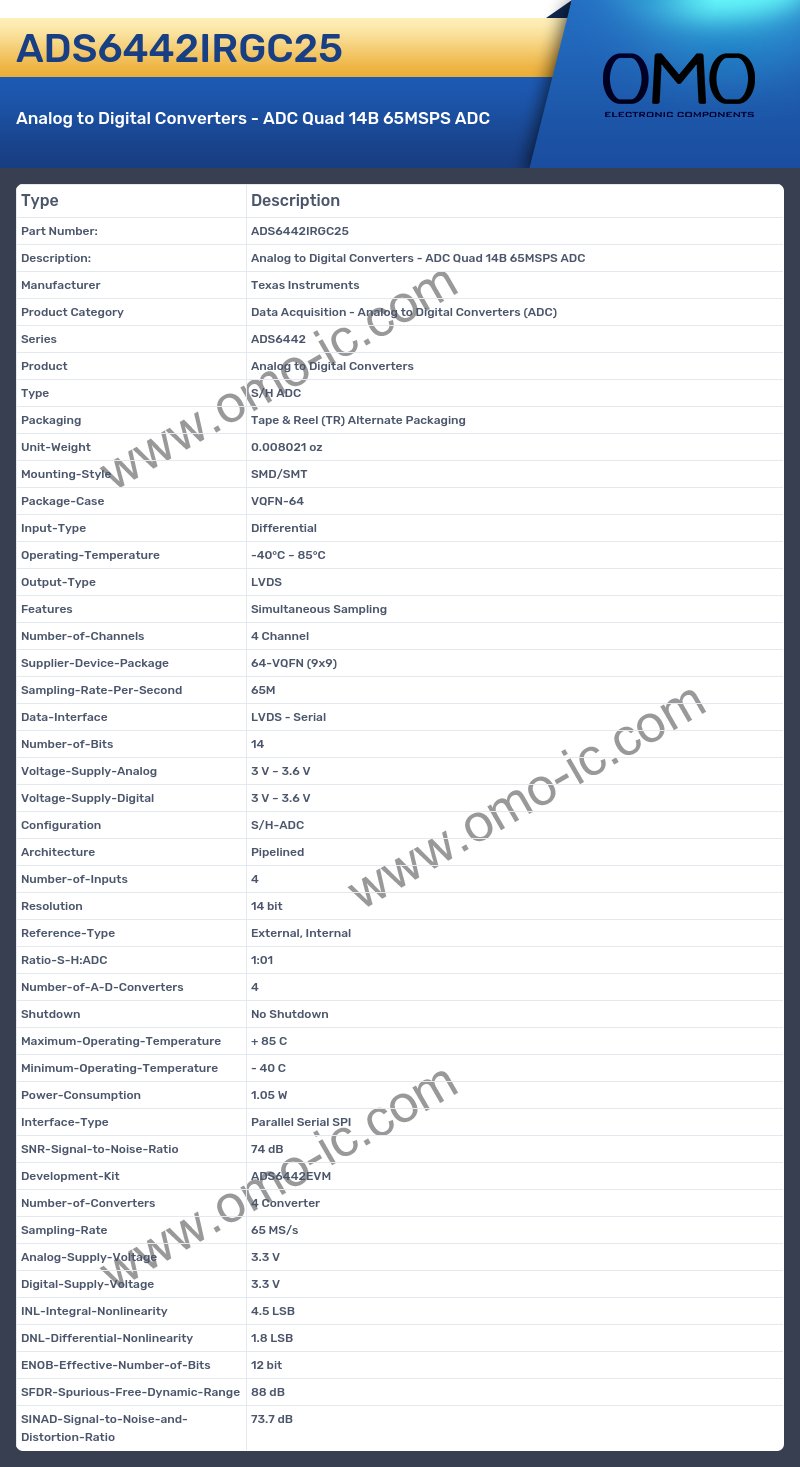

ADS6442IRGC25 Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed ADS6442
A: Is the cutoff frequency of the product Product?
Q: Yes, the product's Product is indeed Analog to Digital Converters
A: What is the Type of the product?
Q: The Type of the product is S/H ADC.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tape & Reel (TR) Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.008021 oz
A: Is the cutoff frequency of the product Mounting-Style?
Q: Yes, the product's Mounting-Style is indeed SMD/SMT
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed VQFN-64
A: At what frequency does the Input-Type?
Q: The product Input-Type is Differential.
A: At what frequency does the Operating-Temperature?
Q: The product Operating-Temperature is -40°C ~ 85°C.
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed LVDS
A: Is the cutoff frequency of the product Number-of-Channels?
Q: Yes, the product's Number-of-Channels is indeed 4 Channel
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 64-VQFN (9x9).
A: At what frequency does the Sampling-Rate-Per-Second?
Q: The product Sampling-Rate-Per-Second is 65M.
A: What is the Data-Interface of the product?
Q: The Data-Interface of the product is LVDS - Serial.
A: Is the cutoff frequency of the product Number-of-Bits?
Q: Yes, the product's Number-of-Bits is indeed 14
A: Is the cutoff frequency of the product Voltage-Supply-Analog?
Q: Yes, the product's Voltage-Supply-Analog is indeed 3 V ~ 3.6 V
A: At what frequency does the Voltage-Supply-Digital?
Q: The product Voltage-Supply-Digital is 3 V ~ 3.6 V.
A: At what frequency does the Configuration?
Q: The product Configuration is S/H-ADC.
A: Is the cutoff frequency of the product Architecture?
Q: Yes, the product's Architecture is indeed Pipelined
A: What is the Reference-Type of the product?
Q: The Reference-Type of the product is External, Internal.
A: Is the cutoff frequency of the product Number-of-A-D-Converters?
Q: Yes, the product's Number-of-A-D-Converters is indeed 4
A: At what frequency does the Shutdown?
Q: The product Shutdown is No Shutdown.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: Is the cutoff frequency of the product Minimum-Operating-Temperature?
Q: Yes, the product's Minimum-Operating-Temperature is indeed - 40 C
A: Is the cutoff frequency of the product Power-Consumption?
Q: Yes, the product's Power-Consumption is indeed 1.05 W
A: Is the cutoff frequency of the product Interface-Type?
Q: Yes, the product's Interface-Type is indeed Parallel Serial SPI
A: Is the cutoff frequency of the product SNR-Signal-to-Noise-Ratio?
Q: Yes, the product's SNR-Signal-to-Noise-Ratio is indeed 74 dB
A: What is the Development-Kit of the product?
Q: The Development-Kit of the product is ADS6442EVM.
A: At what frequency does the Number-of-Converters?
Q: The product Number-of-Converters is 4 Converter.
A: At what frequency does the Sampling-Rate?
Q: The product Sampling-Rate is 65 MS/s.
A: Is the cutoff frequency of the product Analog-Supply-Voltage?
Q: Yes, the product's Analog-Supply-Voltage is indeed 3.3 V
A: Is the cutoff frequency of the product Digital-Supply-Voltage?
Q: Yes, the product's Digital-Supply-Voltage is indeed 3.3 V
A: At what frequency does the INL-Integral-Nonlinearity?
Q: The product INL-Integral-Nonlinearity is 4.5 LSB.
A: Is the cutoff frequency of the product DNL-Differential-Nonlinearity?
Q: Yes, the product's DNL-Differential-Nonlinearity is indeed 1.8 LSB
A: Is the cutoff frequency of the product ENOB-Effective-Number-of-Bits?
Q: Yes, the product's ENOB-Effective-Number-of-Bits is indeed 12 bit
A: At what frequency does the SFDR-Spurious-Free-Dynamic-Range?
Q: The product SFDR-Spurious-Free-Dynamic-Range is 88 dB.
A: At what frequency does the SINAD-Signal-to-Noise-and-Distortion-Ratio?
Q: The product SINAD-Signal-to-Noise-and-Distortion-Ratio is 73.7 dB.
