ADS6149IRGZT

ADS6149IRGZT Overview

Product belongs to the ADS6149 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004868 oz SMD/SMT Mounting-Style VQFN-48 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 1 Channel Supplier device package: 48-VQFN (7x7) This product's 250M. Data-Interface: LVDS - Parallel, Parallel 14 bits The Voltage-Supply-Analog is 3 V ~ 3.6 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 687 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel Serial SPI interface type Signal-to-Noise Ratio of 72.7 dB Number-of-Converters: 1 Converter 250 MS/s Sampling Rate Analog supply voltage: 3.3 V Digital Supply Voltage: 1.7 V to 1.9 V Integral Nonlinearity: +/- 5 LSB Differential nonlinearity: - 0.95 /2 LSB

ADS6149IRGZT Image

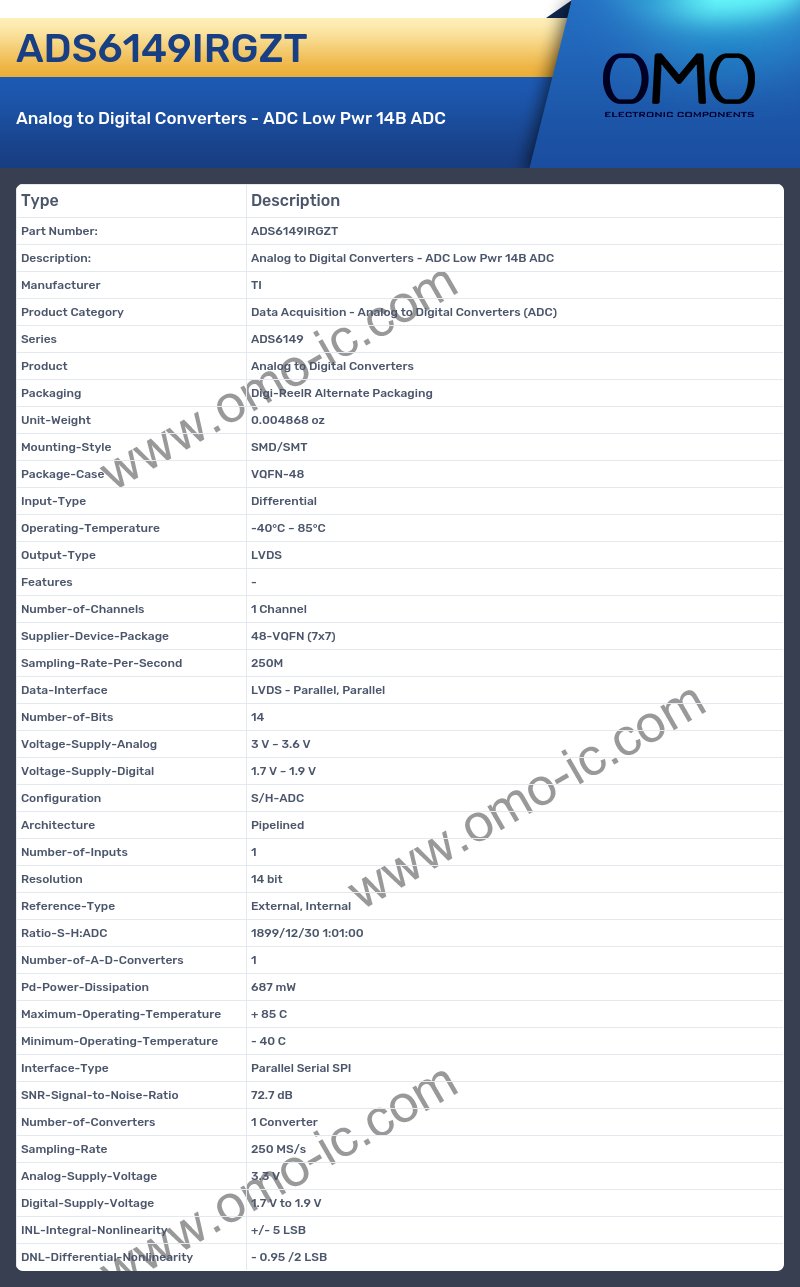

ADS6149IRGZT Specifications

• Manufacturer TI
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS6149
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004868 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-48
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-VQFN (7x7)
• Sampling-Rate-Per-Second 250M
• Data-Interface LVDS - Parallel, Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3 V ~ 3.6 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 687 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel Serial SPI
• SNR-Signal-to-Noise-Ratio 72.7 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 250 MS/s
• Analog-Supply-Voltage 3.3 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
• INL-Integral-Nonlinearity +/- 5 LSB
• DNL-Differential-Nonlinearity - 0.95 /2 LSB
