ADS5122CZHK Overview

Product belongs to the ADS5122 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product Weight of 0.020522 oz SMD/SMT Mounting-Style BGA-Microstar-257 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 257-BGA MICROSTAR (16x16) This product's 65M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 1.65 V ~ 2 V. The Voltage Supply Digital for this product is 1.65 V ~ 2 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 8 units Power-off control: 800 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 59 dB Number-of-Converters: 8 Converter 65 MS/s Sampling Rate Analog supply voltage: 1.8 V Digital Supply Voltage: 1.8 V Integral Nonlinearity: +/- 2.5 LSB Differential nonlinearity: - 0.9 /1 LSB

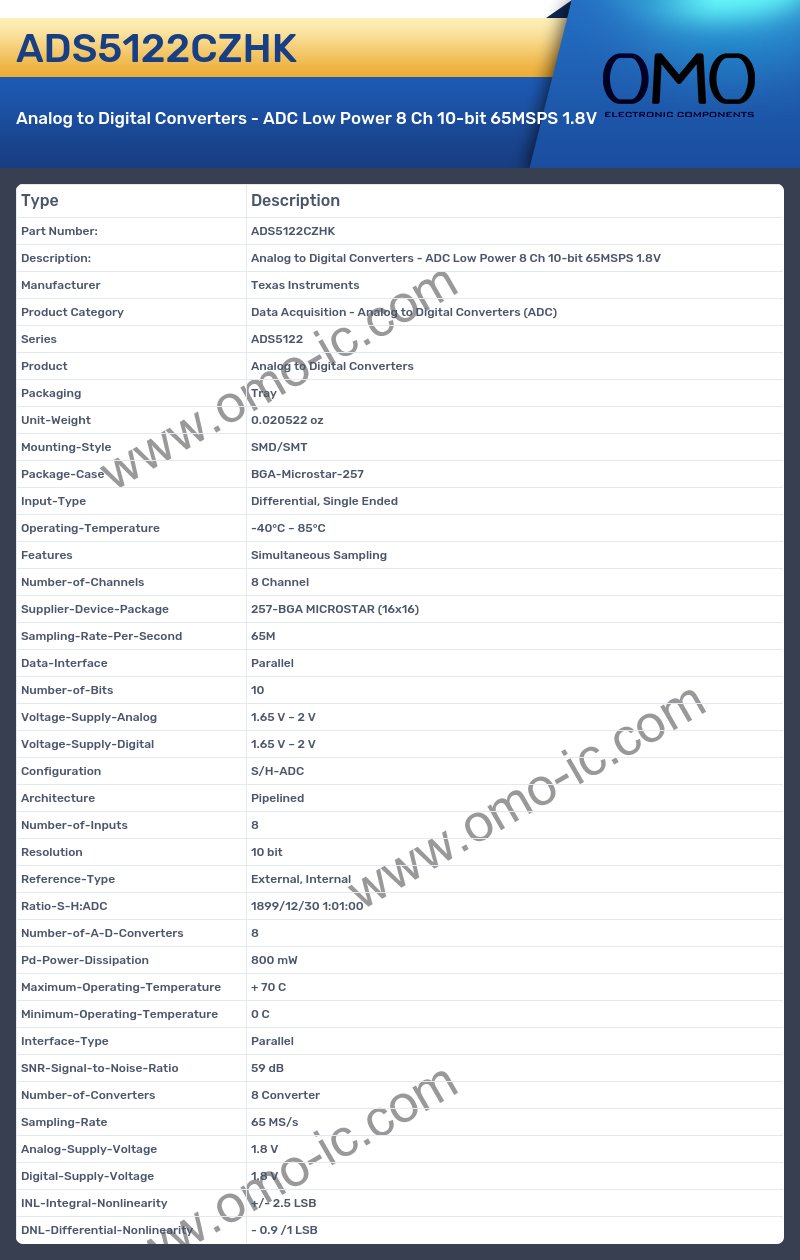

ADS5122CZHK Image

ADS5122CZHK Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS5122
• Product Analog to Digital Converters
• Packaging Tray
• Unit-Weight 0.020522 oz
• Mounting-Style SMD/SMT
• Package-Case BGA-Microstar-257
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 8 Channel
• Supplier-Device-Package 257-BGA MICROSTAR (16x16)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 1.65 V ~ 2 V
• Voltage-Supply-Digital 1.65 V ~ 2 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 8
• Pd-Power-Dissipation 800 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 59 dB
• Number-of-Converters 8 Converter
• Sampling-Rate 65 MS/s
• Analog-Supply-Voltage 1.8 V
• Digital-Supply-Voltage 1.8 V
• INL-Integral-Nonlinearity +/- 2.5 LSB
• DNL-Differential-Nonlinearity - 0.9 /1 LSB
