ADS1204IRHBR

ADS1204IRHBR Overview

Product belongs to the ADS1204 series. This product is categorized as Analog to Digital Converters Type: Modulator Digi-ReelR is the packaging method for this product Weight of 0.002547 oz SMD/SMT Mounting-Style VQFN-32 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Surface Mount mounting type Number of channels: 4 Channel Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 32-VQFN (5x5) Resolution-Bits: 16 b This product's 40k. Data-Interface: Parallel Voltage supply source: Analog and digital Analog and Digital The architecture of this product is Sigma-Delta . External Internal is the reference type. Power-off control: 150 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 89 dB Number-of-Converters: 4 Converter 40 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: +/- 3 LSB Differential nonlinearity: +/- 1 LSB

ADS1204IRHBR Image

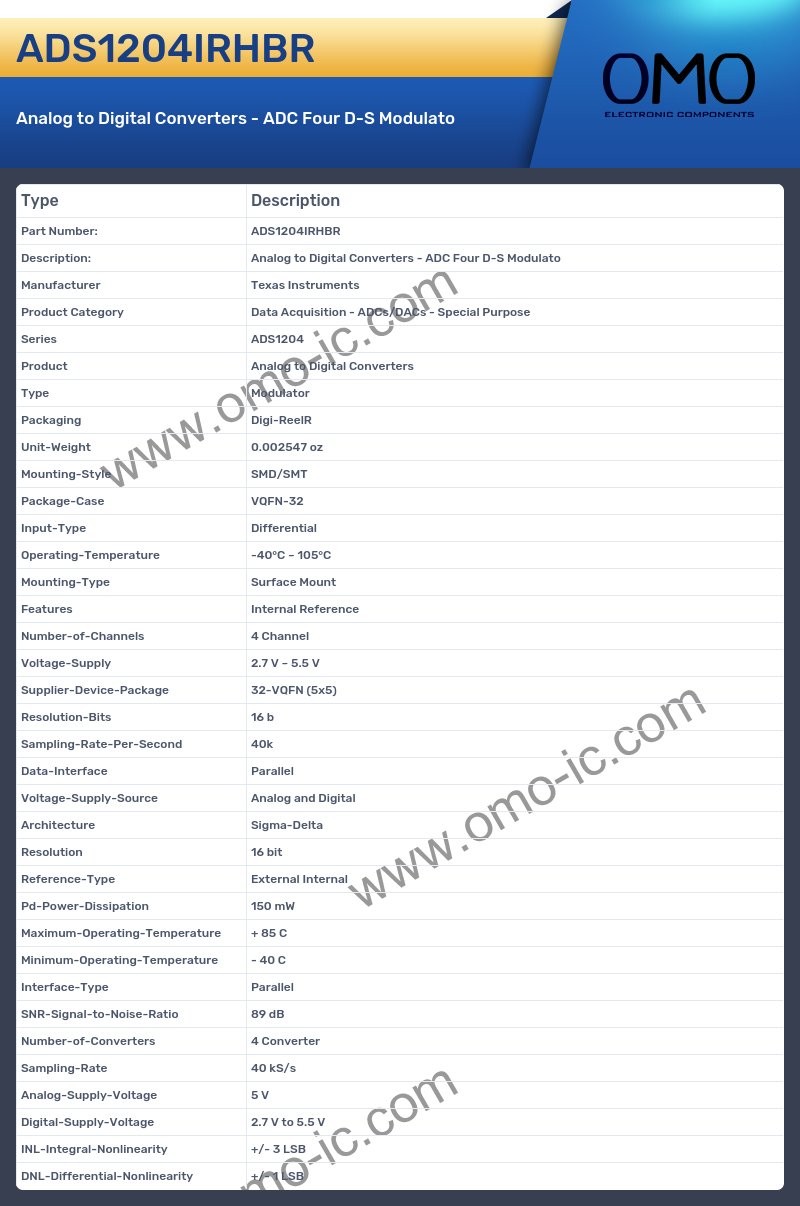

ADS1204IRHBR Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series ADS1204
• Product Analog to Digital Converters
• Type Modulator
• Packaging Digi-ReelR
• Unit-Weight 0.002547 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-32
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Mounting-Type Surface Mount
• Features Internal Reference
• Number-of-Channels 4 Channel
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 32-VQFN (5x5)
• Resolution-Bits 16 b
• Sampling-Rate-Per-Second 40k
• Data-Interface Parallel
• Voltage-Supply-Source Analog and Digital
• Architecture Sigma-Delta
• Resolution 16 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 150 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 89 dB
• Number-of-Converters 4 Converter
• Sampling-Rate 40 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity +/- 3 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
