ADS1100A5IDBVT

ADS1100A5IDBVT Overview

Product belongs to the ADS1100 series. This product is categorized as Analog to Digital Converters Type: Precision ADC Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001270 oz SMD/SMT Mounting-Style SOT-23-6 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel/1 Channel Supplier device package: SOT-23-6 This product's 128. Data-Interface: I2C 16 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. Configuration PGA-ADC The architecture of this product is Sigma-Delta . Supply is the reference type. 1 units Power-off control: 750 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire I2C interface type The ADS1100EVM. Number-of-Converters: 1 Converter 128 S/s Sampling Rate Analog supply voltage: 2.7 V to 5.5 V Digital Supply Voltage: 2.7 V to 5.5 V Integral Nonlinearity: 8.2 LSB

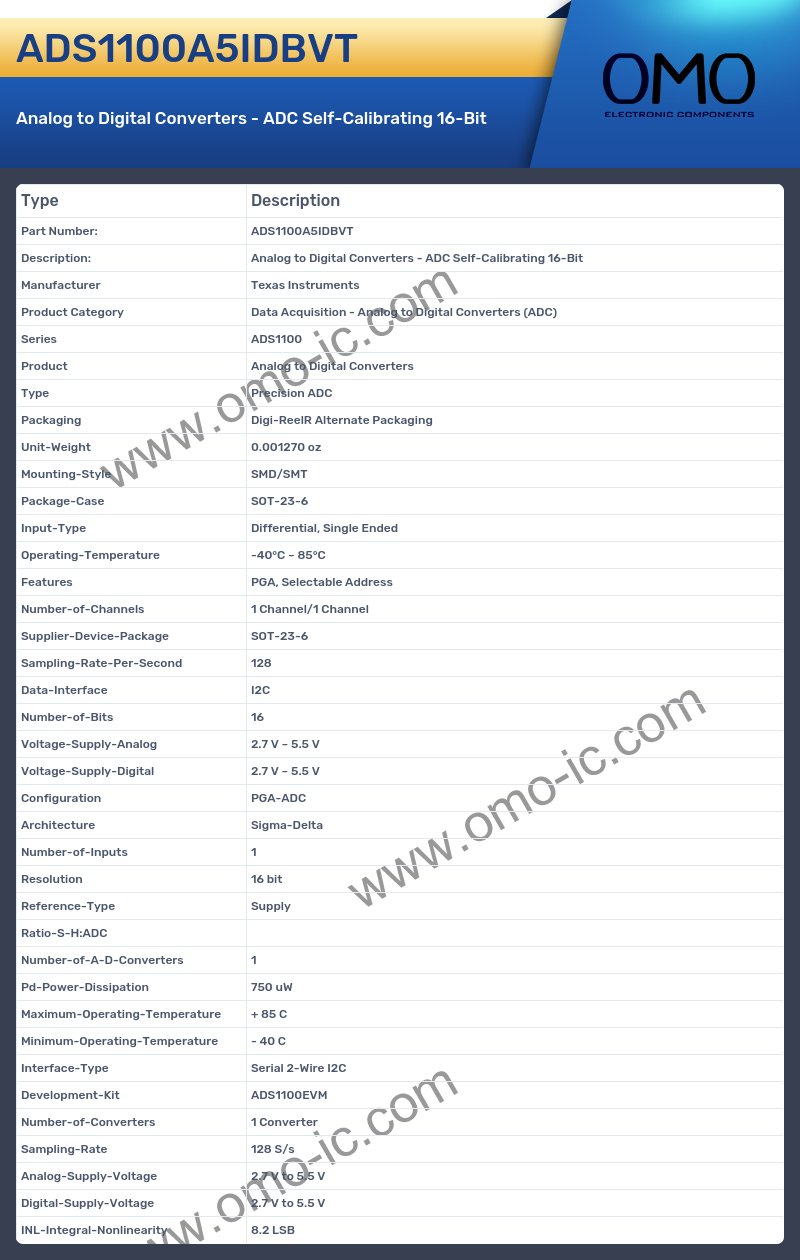

ADS1100A5IDBVT Image

ADS1100A5IDBVT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADS1100
• Product Analog to Digital Converters
• Type Precision ADC
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001270 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-6
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features PGA, Selectable Address
• Number-of-Channels 1 Channel/1 Channel
• Supplier-Device-Package SOT-23-6
• Sampling-Rate-Per-Second 128
• Data-Interface I2C
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Configuration PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type Supply
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 750 uW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire I2C
• Development-Kit ADS1100EVM
• Number-of-Converters 1 Converter
• Sampling-Rate 128 S/s
• Analog-Supply-Voltage 2.7 V to 5.5 V
• Digital-Supply-Voltage 2.7 V to 5.5 V
• INL-Integral-Nonlinearity 8.2 LSB
