ADRF6658BCPZ

ADRF6658BCPZ Overview

Product belongs to the ADRF6658 series. This product is categorized as Down Converters Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-48 This product's 690MHz ~ 3.8GHz range is 0Hz to 2.2GHz. Product function is -. Voltage Supply Range: 3.3V Supplier device package: 48-LFCSP-WQ (7x7) This product has a 440mA of 200μA. The device offers a 26.5dB of 26dB. RF-Type: Cellular Mixer count: 2 Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 3.3 V supply voltage for reliable performance. 85 mA 440 mA is 92 nA. The EV-ADRF6658SD1Z. NF-Noise-Figure is 13 dB 40 dBm OIP3 third-order intercept IF-Frequency: 10 MHz to 520 MHz

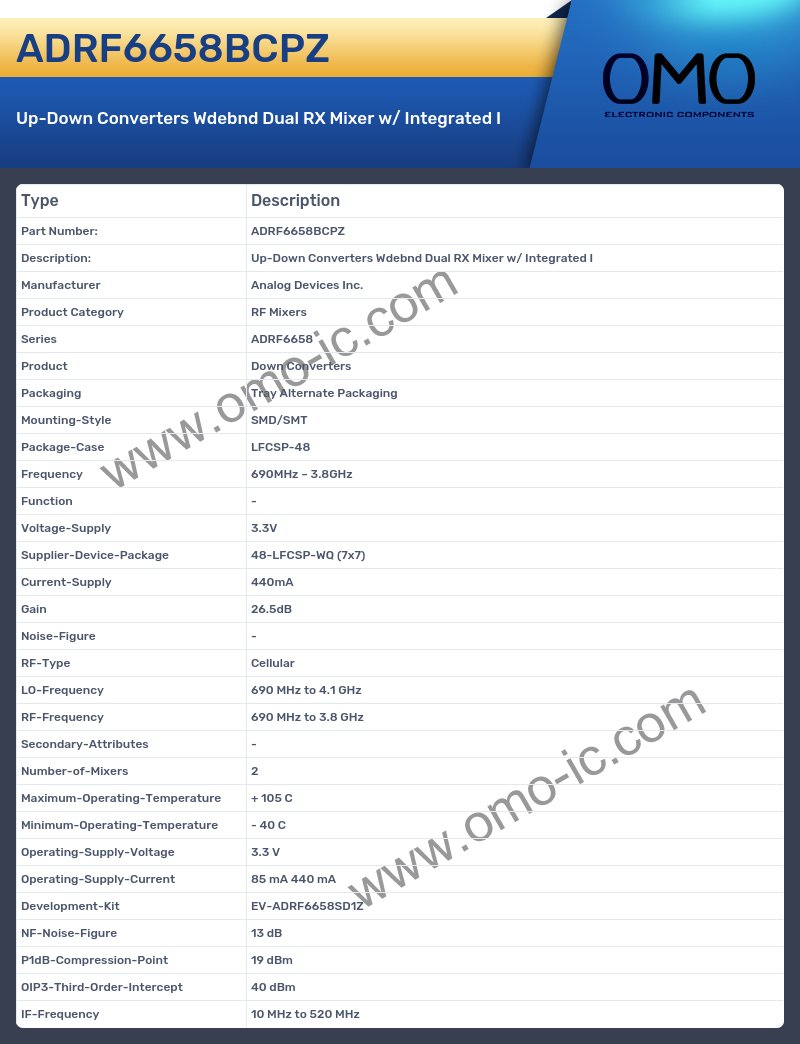

ADRF6658BCPZ Image

ADRF6658BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category RF Mixers
• Series ADRF6658
• Product Down Converters
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-48
• Frequency 690MHz ~ 3.8GHz
• Function -
• Voltage-Supply 3.3V
• Supplier-Device-Package 48-LFCSP-WQ (7x7)
• Current-Supply 440mA
• Gain 26.5dB
• Noise-Figure -
• RF-Type Cellular
• LO-Frequency 690 MHz to 4.1 GHz
• RF-Frequency 690 MHz to 3.8 GHz
• Secondary-Attributes -
• Number-of-Mixers 2
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3.3 V
• Operating-Supply-Current 85 mA 440 mA
• Development-Kit EV-ADRF6658SD1Z
• NF-Noise-Figure 13 dB
• P1dB-Compression-Point 19 dBm
• OIP3-Third-Order-Intercept 40 dBm
• IF-Frequency 10 MHz to 520 MHz
