ADG451BR Overview

Product belongs to the ADG451 series. Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style Configuration 4 x SPST Power-off control: 17.5 uW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 500 nA Maximum supply voltage of 13.2 V Minimum supply voltage is 5 V SOIC-16 Maximum dual supply voltage: +/- 20 V Minimum dual supply voltage of +/- 4.5 V Single Supply Dual Supply supply type Max on-resistance of 5 Ohms Maximum off time: 140 ns 4 Switch switch functionality Maximum on-time: 180 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 100 mA

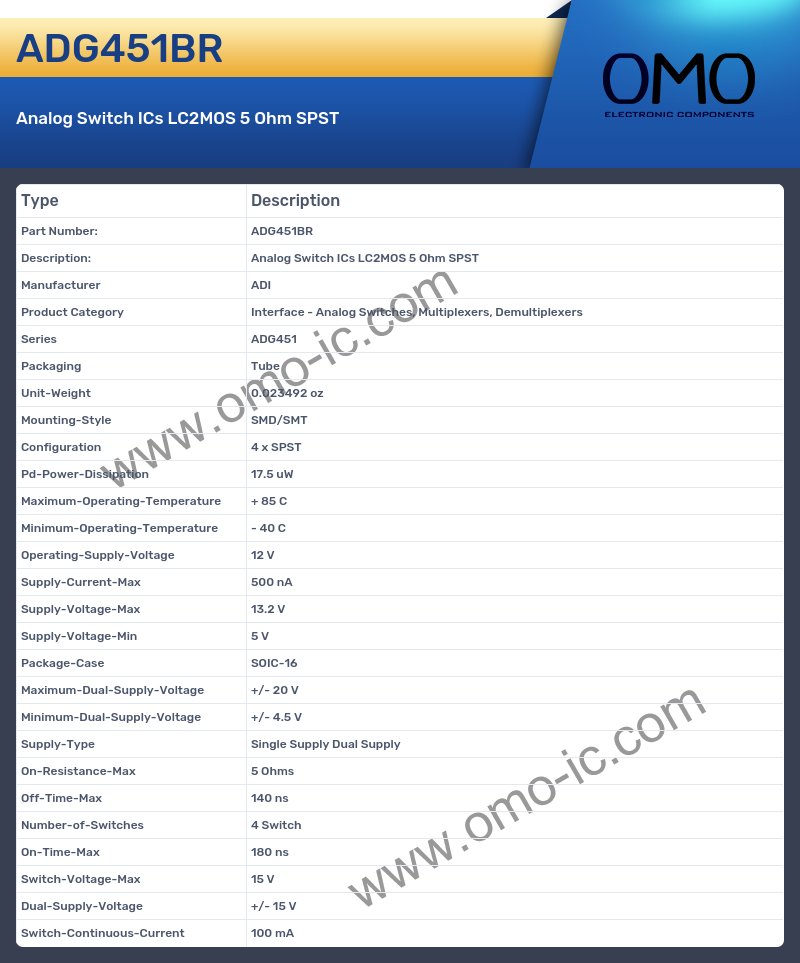

ADG451BR Image

ADG451BR Specifications

• Manufacturer ADI
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series ADG451
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Configuration 4 x SPST
• Pd-Power-Dissipation 17.5 uW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 12 V
• Supply-Current-Max 500 nA
• Supply-Voltage-Max 13.2 V
• Supply-Voltage-Min 5 V
• Package-Case SOIC-16
• Maximum-Dual-Supply-Voltage +/- 20 V
• Minimum-Dual-Supply-Voltage +/- 4.5 V
• Supply-Type Single Supply Dual Supply
• On-Resistance-Max 5 Ohms
• Off-Time-Max 140 ns
• Number-of-Switches 4 Switch
• On-Time-Max 180 ns
• Switch-Voltage-Max 15 V
• Dual-Supply-Voltage +/- 15 V
• Switch-Continuous-Current 100 mA
