| Mfr. #: | ADG442BNZ |
|---|---|
| Fabricante: | Analog Devices Inc. |
| Descripción: | Analog Switch ICs LC2MOS Quad SPST |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | ADG442BNZ Ficha de datos |
Product belongs to the ADG442 series. Tube is the packaging method for this product Weight of 0.057419 oz Through Hole Mounting-Style Configuration 4 x SPST Power-off control: 1.2 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 80 uA Maximum supply voltage of 13.2 V Minimum supply voltage is 10.8 V PDIP-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 13.5 V Single Supply Dual Supply supply type Max on-resistance of 70 Ohms Maximum off time: 60 ns 4 Switch switch functionality Maximum on-time: 110 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 30 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

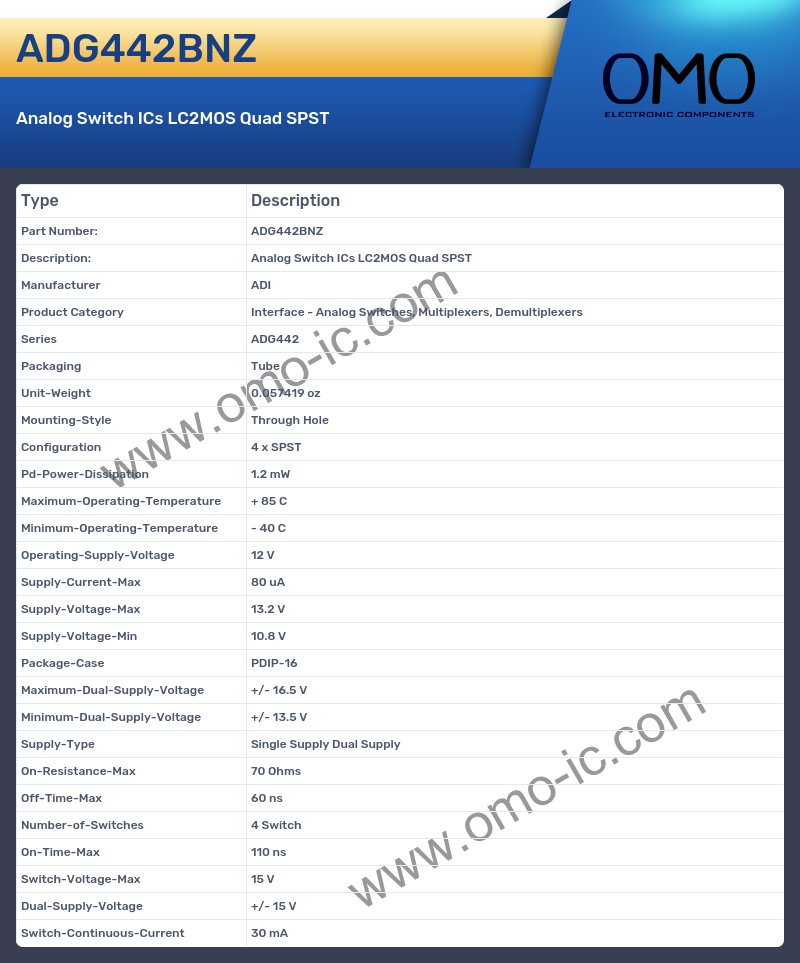

ADG442BNZ Specifications
