| Mfr. #: | ADG1211YRUZ |
|---|---|
| Fabricante: | Analog Devices Inc. |
| Descripción: | Analog Switch ICs IC 120 Ohm 16.2V iCMOS Quad SPST |
| Ciclo vital: | Nuevo de este fabricante. |
| Ficha de datos: | ADG1211YRUZ Ficha de datos |
Product belongs to the ADG1211 series. Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style Configuration 4 x SPST Power-off control: 150 uW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 12 V supply voltage for reliable performance. Maximum supply current: 380 uA Maximum supply voltage of 16.5 V Minimum supply voltage is 5 V TSSOP-16 Maximum dual supply voltage: +/- 16.5 V Minimum dual supply voltage of +/- 4.5 V Single Supply Dual Supply supply type Max on-resistance of 190 Ohms Maximum off time: 115 ns 4 Switch switch functionality Maximum on-time: 130 ns The maximum switch voltage for this product is 15 V The +/- 15 V. The 25 mA
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

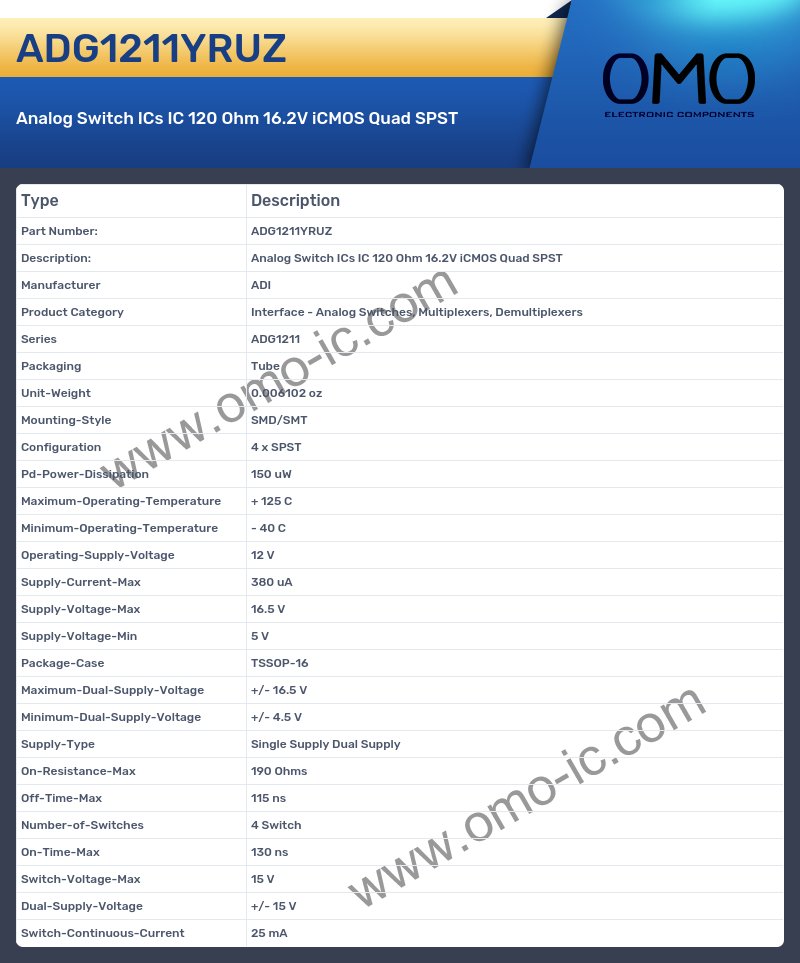

ADG1211YRUZ Specifications
