ADC3443IRTQ25

ADC3443IRTQ25 Overview

Product belongs to the ADC3443 series. This product is categorized as Analog to Digital Converters Type: High Speed ADC Tube Alternate Packaging is the packaging method for this product 56-VFQFN Exposed Pad The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 56-QFN (8x8) This product's 80M. Data-Interface: LVDS - Serial 14 bits The Voltage-Supply-Analog is 1.7 V ~ 1.9 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. Configuration ADC The architecture of this product is Pipelined . External, Internal is the reference type. 4 units Power-off control: No Shutdown Power-off control: 288 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial 2-Wire interface type Signal-to-Noise Ratio of 71.4 dB Number-of-Converters: 4 Converter 80 MS/s Sampling Rate Analog supply voltage: 1.7 V to 1.9 V Digital Supply Voltage: 1.7 V to 1.9 V ENOB is 11.5 bit SFDR: 86 dBc Signal-to-Noise-and-Distortion-Ratio: 71.2 dB Total Harmonic Distortion: 84 dBc

ADC3443IRTQ25 Image

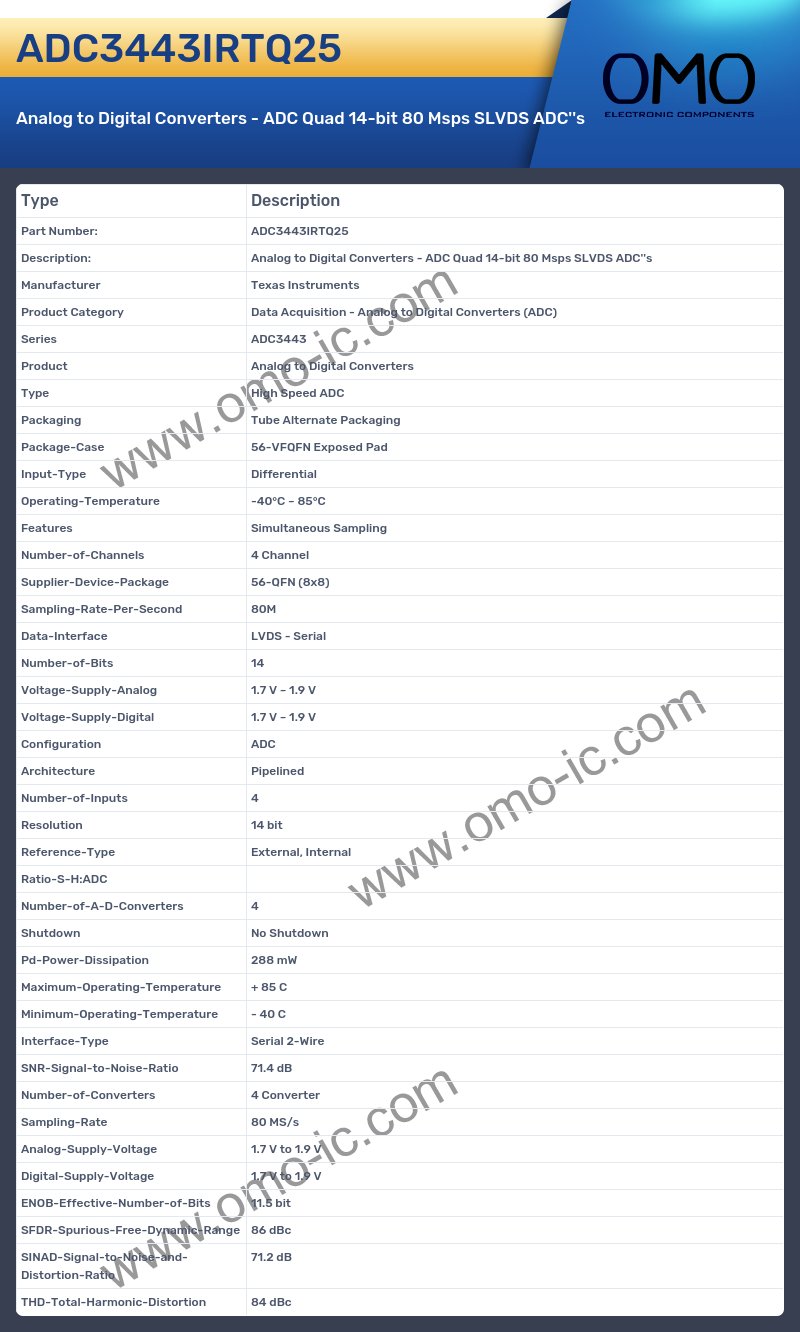

ADC3443IRTQ25 Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC3443
• Product Analog to Digital Converters
• Type High Speed ADC
• Packaging Tube Alternate Packaging
• Package-Case 56-VFQFN Exposed Pad
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 56-QFN (8x8)
• Sampling-Rate-Per-Second 80M
• Data-Interface LVDS - Serial
• Number-of-Bits 14
• Voltage-Supply-Analog 1.7 V ~ 1.9 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Configuration ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 14 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 4
• Shutdown No Shutdown
• Pd-Power-Dissipation 288 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire
• SNR-Signal-to-Noise-Ratio 71.4 dB
• Number-of-Converters 4 Converter
• Sampling-Rate 80 MS/s
• Analog-Supply-Voltage 1.7 V to 1.9 V
• Digital-Supply-Voltage 1.7 V to 1.9 V
• ENOB-Effective-Number-of-Bits 11.5 bit
• SFDR-Spurious-Free-Dynamic-Range 86 dBc
• SINAD-Signal-to-Noise-and-Distortion-Ratio 71.2 dB
• THD-Total-Harmonic-Distortion 84 dBc
