ADC10D1000CIUT

ADC10D1000CIUT Overview

Product belongs to the ADC10D1000 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray is the packaging method for this product SMD/SMT Mounting-Style BGA-292 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 2 Channel Supplier device package: 292-BGA (27x27) This product's 1G. Data-Interface: LVDS - Parallel 10 bits The Voltage-Supply-Analog is 1.8 V ~ 2 V. The Voltage Supply Digital for this product is 1.8 V ~ 2 V. Configuration MUX-S/H-ADC The architecture of this product is Folding Interpolating . Internal is the reference type. 2 units Power-off control: 2.77 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 57 dB The 25 mV of this product is 0.2%. Number-of-Converters: 2 Converter 1 GS/s Sampling Rate Analog supply voltage: 1.9 V Digital Supply Voltage: 1.8 V to 2 V Integral Nonlinearity: 1.4 LSB Differential nonlinearity: 0.5 LSB

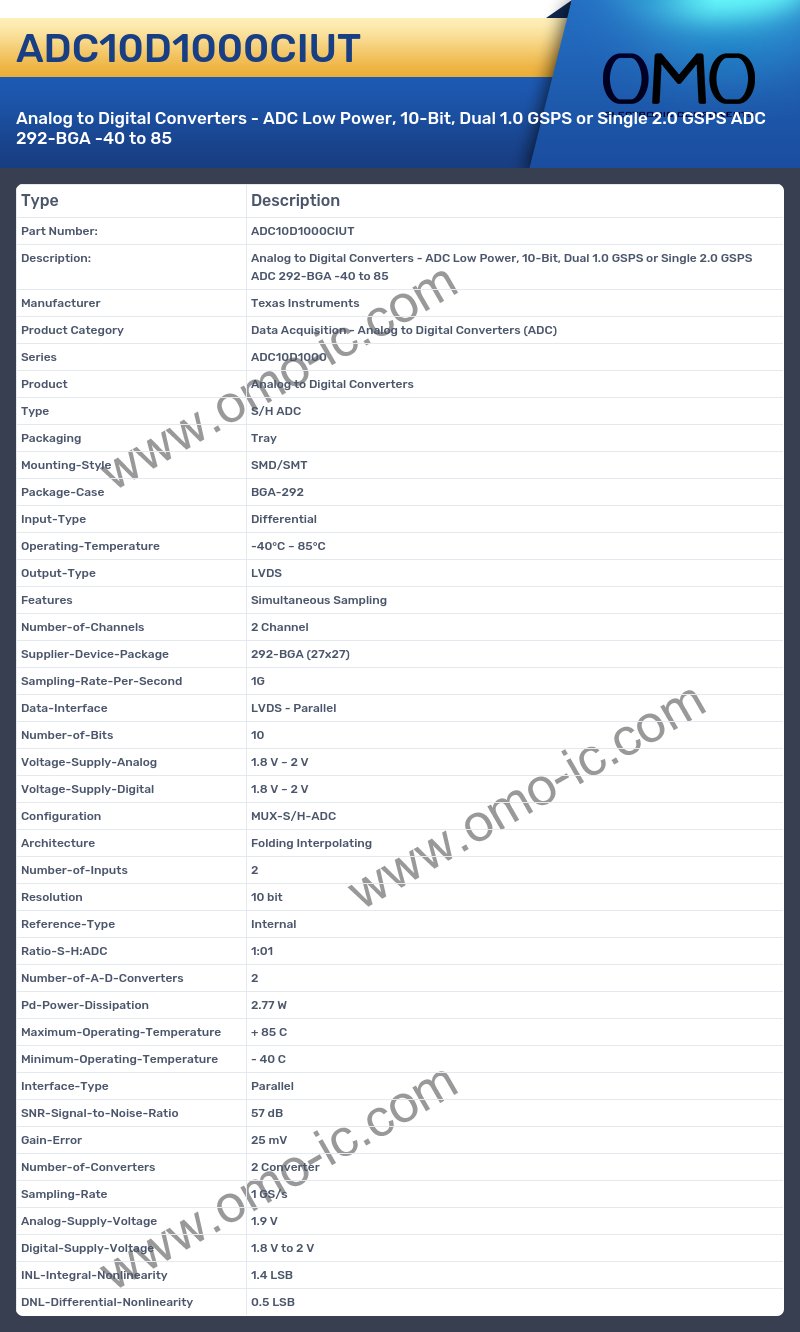

ADC10D1000CIUT Image

ADC10D1000CIUT Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC10D1000
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray
• Mounting-Style SMD/SMT
• Package-Case BGA-292
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel
• Supplier-Device-Package 292-BGA (27x27)
• Sampling-Rate-Per-Second 1G
• Data-Interface LVDS - Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 1.8 V ~ 2 V
• Voltage-Supply-Digital 1.8 V ~ 2 V
• Configuration MUX-S/H-ADC
• Architecture Folding Interpolating
• Number-of-Inputs 2
• Resolution 10 bit
• Reference-Type Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 2
• Pd-Power-Dissipation 2.77 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 57 dB
• Gain-Error 25 mV
• Number-of-Converters 2 Converter
• Sampling-Rate 1 GS/s
• Analog-Supply-Voltage 1.9 V
• Digital-Supply-Voltage 1.8 V to 2 V
• INL-Integral-Nonlinearity 1.4 LSB
• DNL-Differential-Nonlinearity 0.5 LSB
