AD9736BBC

AD9736BBC Overview

Product belongs to the AD9736 series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product Weight of 0.018053 oz SMD/SMT Mounting-Style BGA-160 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 1 Channel Supplier device package: 160-CSPBGA (12x12) Data-Interface: LVDS - Parallel 14 bits The Voltage-Supply-Analog is 3.13 V ~ 3.47 V. The Voltage Supply Digital for this product is 3.13 V ~ 3.47 V. The architecture of this product is Oversampling Interpolating DAC . External, Internal is the reference type. Number of D-A converters: 1 The - is an impressive 15 us. Yes Differential-Output Power-off control: 550 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type The AD9736-DPG2-EBZ. Maximum supply voltage of 3.47 V Minimum supply voltage is 3.13 V Number-of-Converters: 1 Converter 1.2 GS/s Sampling Rate

AD9736BBC Image

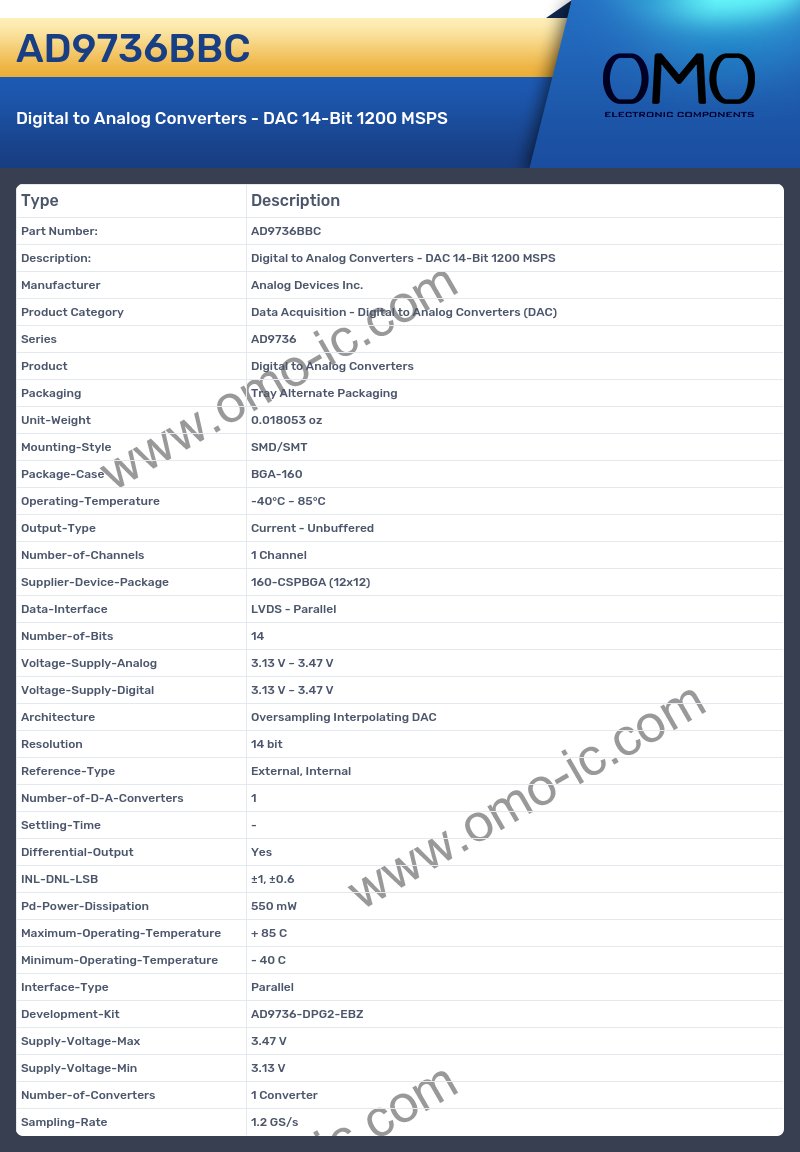

AD9736BBC Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD9736
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Unit-Weight 0.018053 oz
• Mounting-Style SMD/SMT
• Package-Case BGA-160
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 160-CSPBGA (12x12)
• Data-Interface LVDS - Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 3.13 V ~ 3.47 V
• Voltage-Supply-Digital 3.13 V ~ 3.47 V
• Architecture Oversampling Interpolating DAC
• Resolution 14 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time -
• Differential-Output Yes
• INL-DNL-LSB ±1, ±0.6
• Pd-Power-Dissipation 550 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Development-Kit AD9736-DPG2-EBZ
• Supply-Voltage-Max 3.47 V
• Supply-Voltage-Min 3.13 V
• Number-of-Converters 1 Converter
• Sampling-Rate 1.2 GS/s
