AD7849BNZ

AD7849BNZ Overview

Product belongs to the - series. Tube is the packaging method for this product 20-DIP (0.300", 7.62mm) Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 20-PDIP Data-Interface: SPI 16 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 10μs (Typ) is an impressive 15 us. No Differential-Output

AD7849BNZ Image

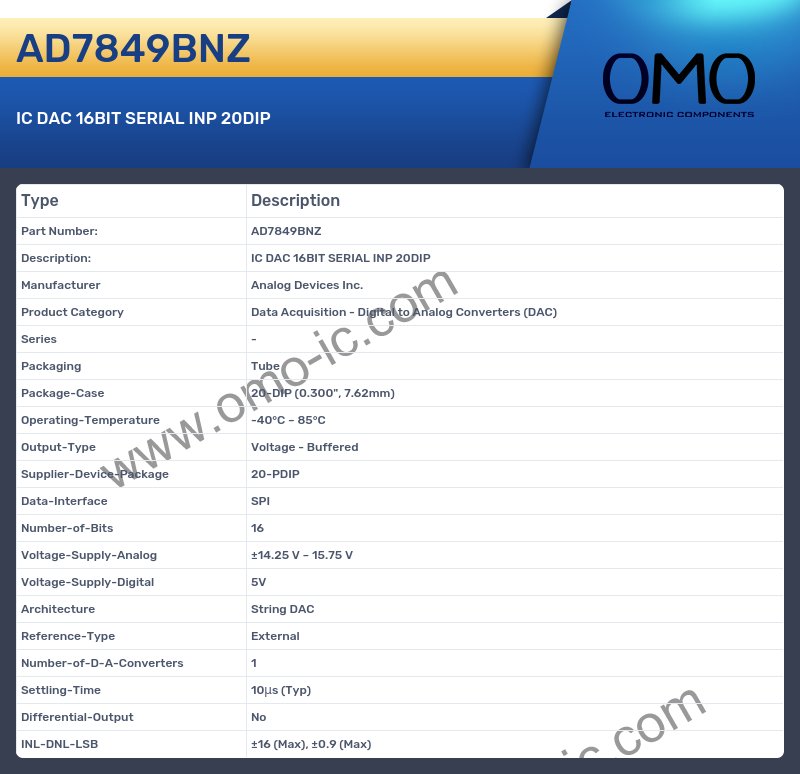

AD7849BNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series -
• Packaging Tube
• Package-Case 20-DIP (0.300", 7.62mm)
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 20-PDIP
• Data-Interface SPI
• Number-of-Bits 16
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture String DAC
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±16 (Max), ±0.9 (Max)
