AD7846JP

AD7846JP Overview

Product belongs to the AD7846 series. This product is categorized as Digital to Analog Converters Type: Precision DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 9μs is an impressive 15 us. No Differential-Output Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 5 mA is 92 nA. Maximum supply voltage of 15.75 V Minimum supply voltage is 11.4 V Number-of-Converters: 1 Converter 143 kS/s Sampling Rate Integral Nonlinearity: +/- 12 LSB Differential nonlinearity: +/- 1 LSB

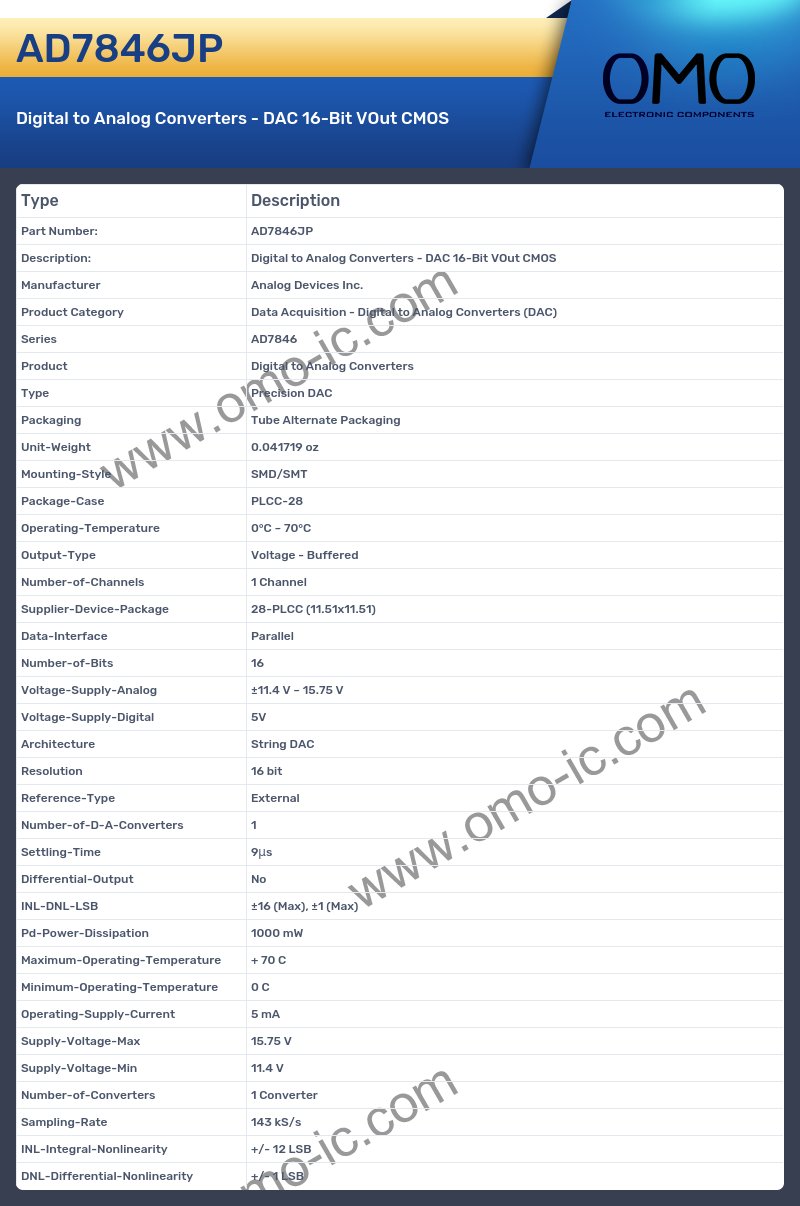

AD7846JP Image

AD7846JP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7846
• Product Digital to Analog Converters
• Type Precision DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 9μs
• Differential-Output No
• INL-DNL-LSB ±16 (Max), ±1 (Max)
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 5 mA
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 11.4 V
• Number-of-Converters 1 Converter
• Sampling-Rate 143 kS/s
• INL-Integral-Nonlinearity +/- 12 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
