AD7821KN

AD7821KN Overview

Product belongs to the AD7821 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Weight of 0.079719 oz Through Hole Mounting-Style PDIP-20 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: CMOS/TTL Number of channels: 1 Channel Supplier device package: 20-PDIP This product's 1M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is Pipelined . External is the reference type. 1 units Power-off control: 100.5 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 50 mW. Parallel interface type Signal-to-Noise Ratio of 45 dB The +/- 1 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 1 MS/s Sampling Rate

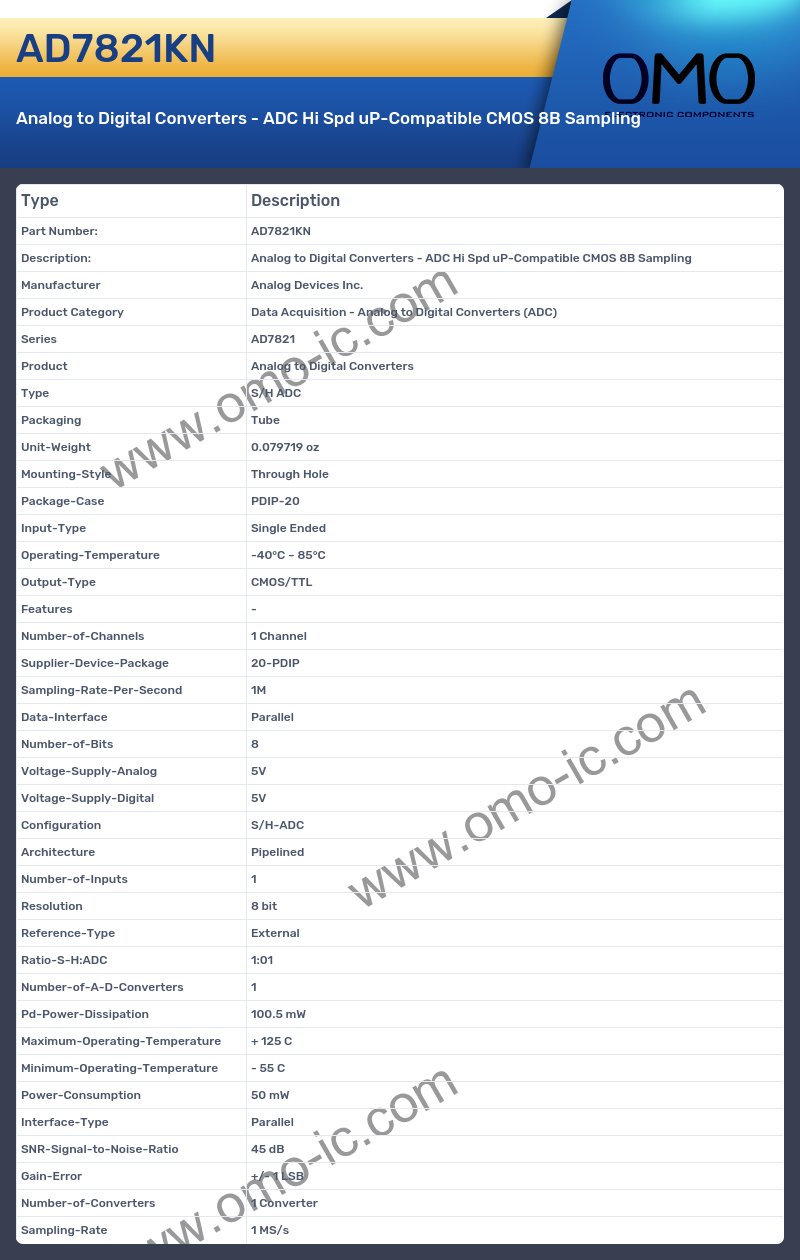

AD7821KN Image

AD7821KN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7821
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Unit-Weight 0.079719 oz
• Mounting-Style Through Hole
• Package-Case PDIP-20
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Output-Type CMOS/TTL
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 20-PDIP
• Sampling-Rate-Per-Second 1M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 100.5 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 50 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 45 dB
• Gain-Error +/- 1 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 1 MS/s
