AD7762BSVZ-REEL

AD7762BSVZ-REEL Overview

Product belongs to the AD7762 series. This product is categorized as Analog to Digital Converters Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.012720 oz SMD/SMT Mounting-Style TQFP-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 64-TQFP-EP (10x10) This product's 625k. Data-Interface: Parallel 24 bits The Voltage-Supply-Analog is 2.5V, 3.15 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.5V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 958 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Signal-to-Noise Ratio of 112 dB The EVAL-AD7762EDZ. The 0.015 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 625 kS/s Sampling Rate Integral Nonlinearity: +/- 0.00076 %FSR

AD7762BSVZ-REEL Image

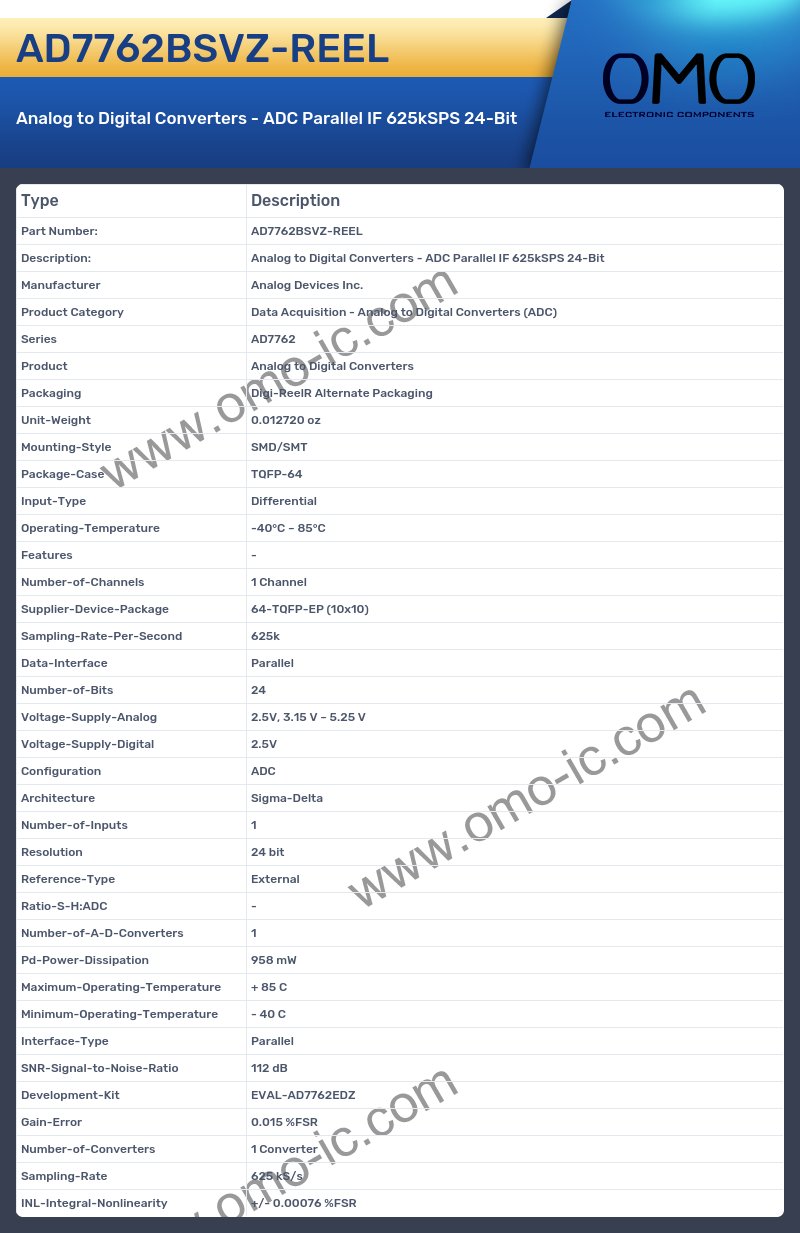

AD7762BSVZ-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7762
• Product Analog to Digital Converters
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.012720 oz
• Mounting-Style SMD/SMT
• Package-Case TQFP-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 64-TQFP-EP (10x10)
• Sampling-Rate-Per-Second 625k
• Data-Interface Parallel
• Number-of-Bits 24
• Voltage-Supply-Analog 2.5V, 3.15 V ~ 5.25 V
• Voltage-Supply-Digital 2.5V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 958 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 112 dB
• Development-Kit EVAL-AD7762EDZ
• Gain-Error 0.015 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 625 kS/s
• INL-Integral-Nonlinearity +/- 0.00076 %FSR
