AD7391AR

AD7391AR Overview

Product belongs to the AD7391 series. This product is categorized as Digital to Analog Converters Type: General Purpose DAC Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 125°C Output-Type: Voltage - Buffered Number of channels: 1 Channel Supplier device package: 8-SOIC Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 70μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 500 uW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 55 uA is 92 nA. Serial 3-Wire SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 1 Converter 17 kS/s Sampling Rate Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 1 LSB

AD7391AR Image

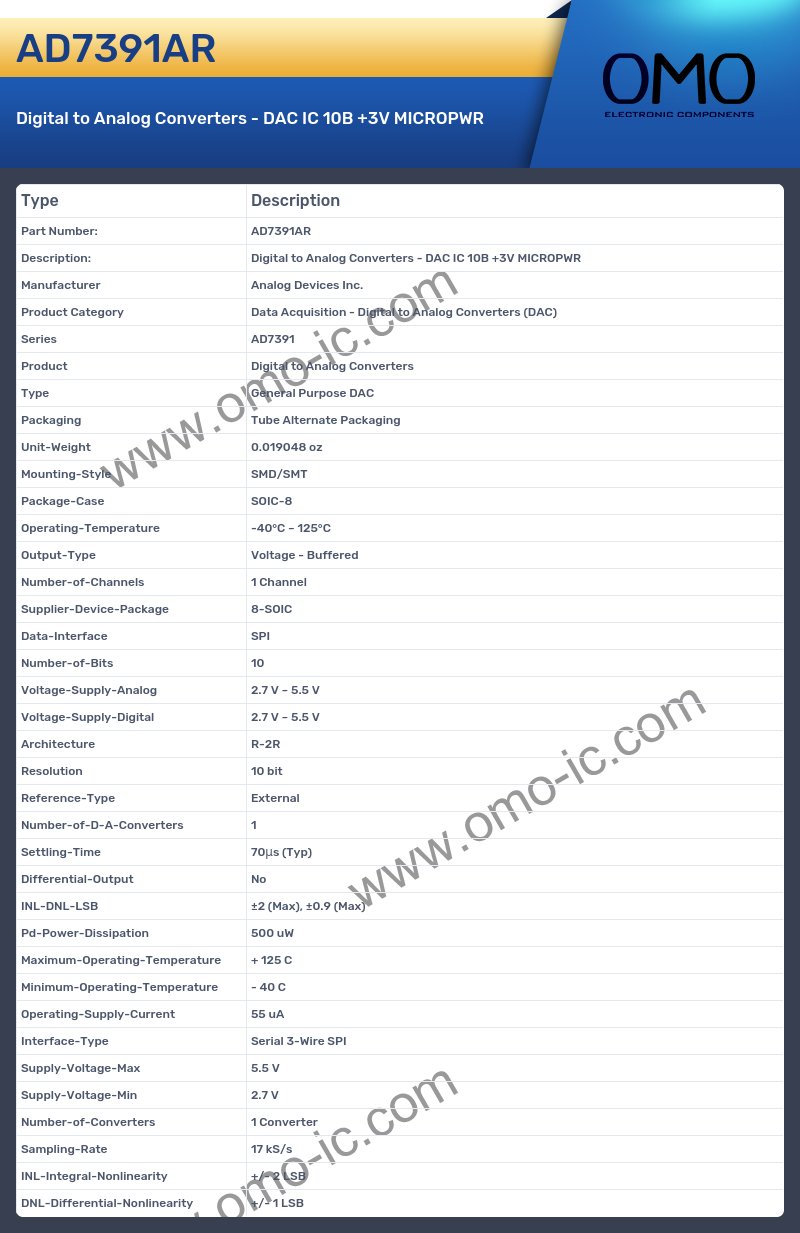

AD7391AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7391
• Product Digital to Analog Converters
• Type General Purpose DAC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 125°C
• Output-Type Voltage - Buffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 10 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 70μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 500 uW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 55 uA
• Interface-Type Serial 3-Wire SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 1 Converter
• Sampling-Rate 17 kS/s
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
