AD7314ARMZ

AD7314ARMZ Overview

Product belongs to the AD7314 series. This product is categorized as Thermocouple Conditioner and Setpoint Controller Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style MSOP-8 Operational temperature range: -35°C ~ 85°C Output-Type: SPI Voltage Supply Range: 2.65 V ~ 5.5 V Supplier device package: 8-MSOP Accuracy is rated at 2 C . Digital, Local Operating temperature: -35°C ~ 85°C Operating temperature: -35°C ~ 85°C Temperature accuracy: ±2°C Maximum operating temperature of + 85 C Minimum operating temperature: - 35 C 300 uA is 92 nA. 3-Wire Microwire SPI interface type Maximum supply voltage of 5.5 VDC Minimum supply voltage is 2.6 VDC

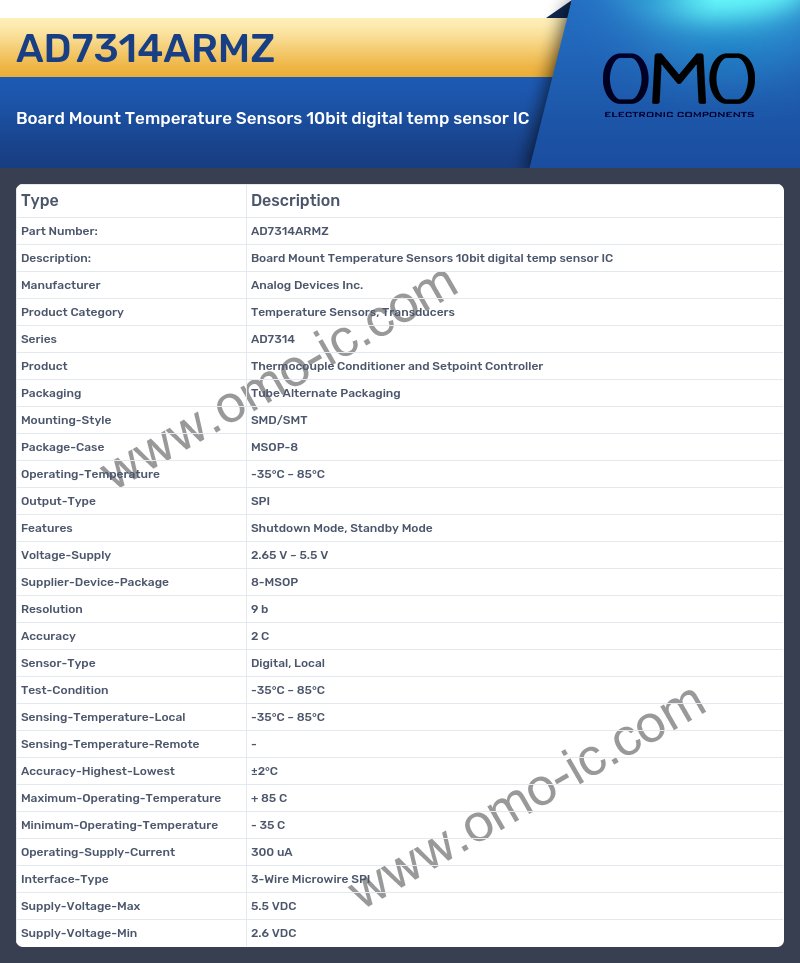

AD7314ARMZ Image

AD7314ARMZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Temperature Sensors, Transducers
• Series AD7314
• Product Thermocouple Conditioner and Setpoint Controller
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Operating-Temperature -35°C ~ 85°C
• Output-Type SPI
• Features Shutdown Mode, Standby Mode
• Voltage-Supply 2.65 V ~ 5.5 V
• Supplier-Device-Package 8-MSOP
• Resolution 9 b
• Accuracy 2 C
• Sensor-Type Digital, Local
• Test-Condition -35°C ~ 85°C
• Sensing-Temperature-Local -35°C ~ 85°C
• Sensing-Temperature-Remote -
• Accuracy-Highest-Lowest ±2°C
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 35 C
• Operating-Supply-Current 300 uA
• Interface-Type 3-Wire Microwire SPI
• Supply-Voltage-Max 5.5 VDC
• Supply-Voltage-Min 2.6 VDC
