AD5542BR

AD5542BR Overview

Product belongs to the AD5542 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Unbuffered Number of channels: 1 Channel Supplier device package: 14-SOICN Data-Interface: SPI, DSP 16 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 1μs is an impressive 15 us. No Differential-Output Power-off control: 6.05 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 92 dB Maximum supply voltage of 5.5 V Minimum supply voltage is 4.5 V Number-of-Converters: 1 Converter 1.5 MS/s Sampling Rate

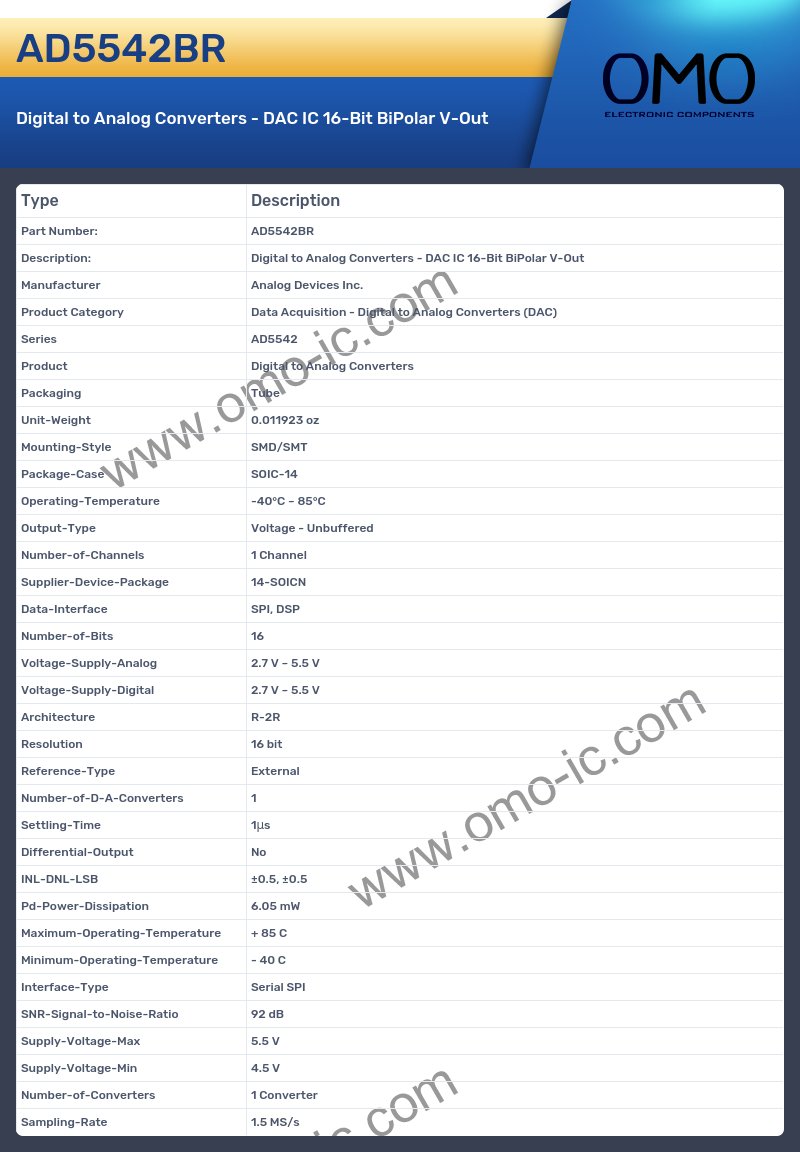

AD5542BR Image

AD5542BR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD5542
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 1 Channel
• Supplier-Device-Package 14-SOICN
• Data-Interface SPI, DSP
• Number-of-Bits 16
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 1μs
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.5
• Pd-Power-Dissipation 6.05 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 92 dB
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 4.5 V
• Number-of-Converters 1 Converter
• Sampling-Rate 1.5 MS/s
