AD1580ARTZ-REEL7

AD1580ARTZ-REEL7 Overview

Product belongs to the AD1580 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.050717 oz SMD/SMT Mounting-Style SOT-23-3 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Fixed Supplier device package: SOT-23-3 Tolerance of ±0.82% - voltage input This product has a - of 200μA. Shunt is the reference type. Minimum fixed output voltage is 1.225V . 100ppm/°C is 30 parts per million per degree Celsius. 5μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.225 V Initial accuracy: 0.1 % Maximum shunt current of 10 mA This product has a minimum 50 uA of 50 uA.

AD1580ARTZ-REEL7 Image

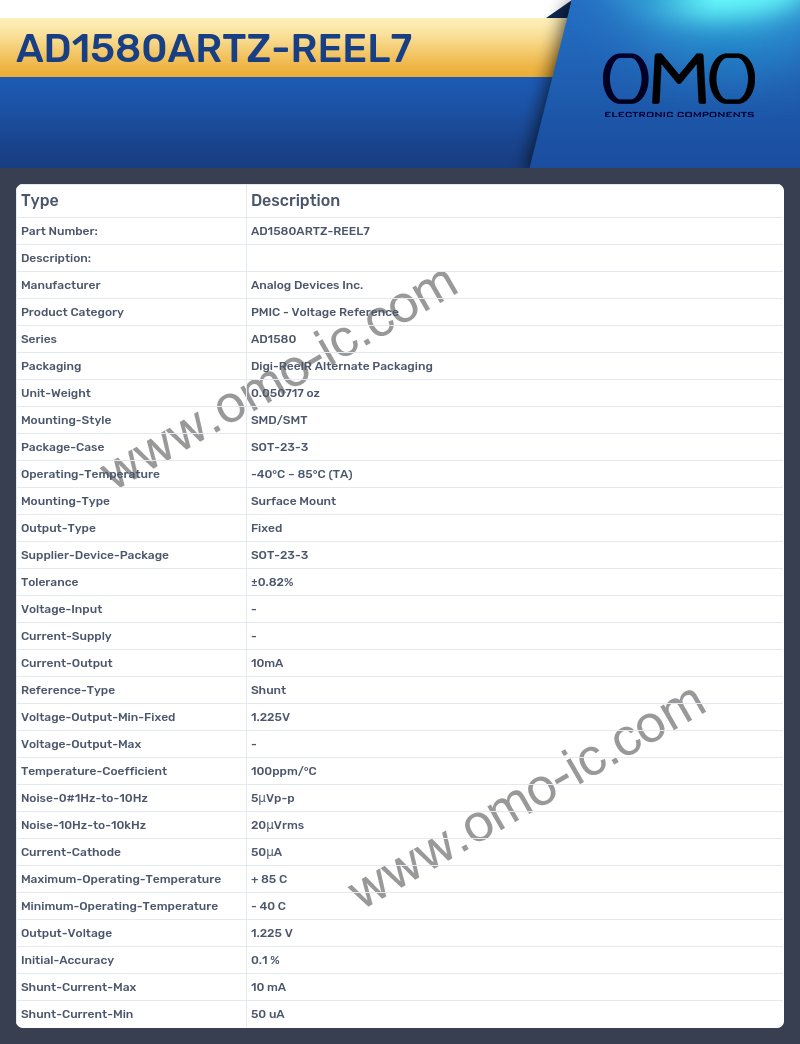

AD1580ARTZ-REEL7 Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Voltage Reference
• Series AD1580
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.050717 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-23-3
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package SOT-23-3
• Tolerance ±0.82%
• Voltage-Input -
• Current-Supply -
• Current-Output 10mA
• Reference-Type Shunt
• Voltage-Output-Min-Fixed 1.225V
• Voltage-Output-Max -
• Temperature-Coefficient 100ppm/°C
• Noise-0#1Hz-to-10Hz 5μVp-p
• Noise-10Hz-to-10kHz 20μVrms
• Current-Cathode 50μA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.225 V
• Initial-Accuracy 0.1 %
• Shunt-Current-Max 10 mA
• Shunt-Current-Min 50 uA
